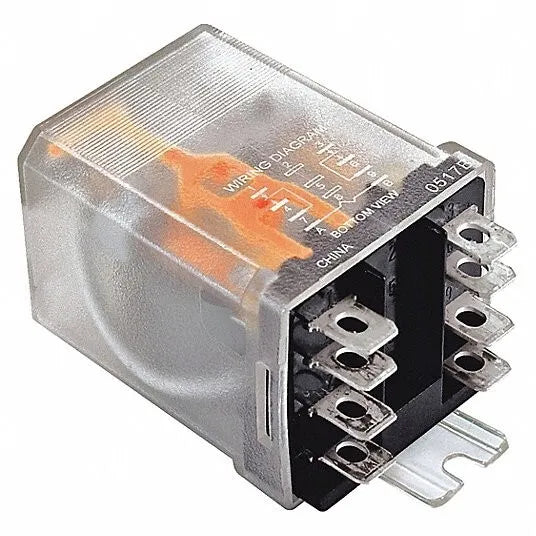

Schneider Magnecraft 389FXCXC-24D Power Relay
Condition: New
Schneider Magnecraft 389FXCXC24D Power Relay
| Coil Current | 60 mA |
| Coil Power | 1.44 W |
| Coil Resistance | 400 Ω |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 20 A |
| Current Rating | 20 A |
| Max Current Rating | 25 A |
| Max Operating Temperature | 55 °C |
| Max Voltage Rating (AC) | 150 V |
| Max Voltage Rating (DC) | 28 V |
| Min Operating Temperature | -40 °C |
| Operate Time | 20 ms |
| Switching Voltage | 300 V |
| Termination | Quick Connect |
| Throw Configuration | 3PDT, DPDT |
| Voltage Rating (AC) | 150 V |
| Dimensions | |
|---|---|
| Depth | 55.52 mm |
| Height | 35.72 mm |
| Length | 38.89 mm |
| Compliance | |
| Approvals | CE, CSA, cULus |
| RoHS | Compliant |
