Schneider Electric RJF36200U63AE1

RJF36200U63AE1 Square D Circuit Breaker

  • $12,166.95
    Unit price per

Condition: New

4 Available

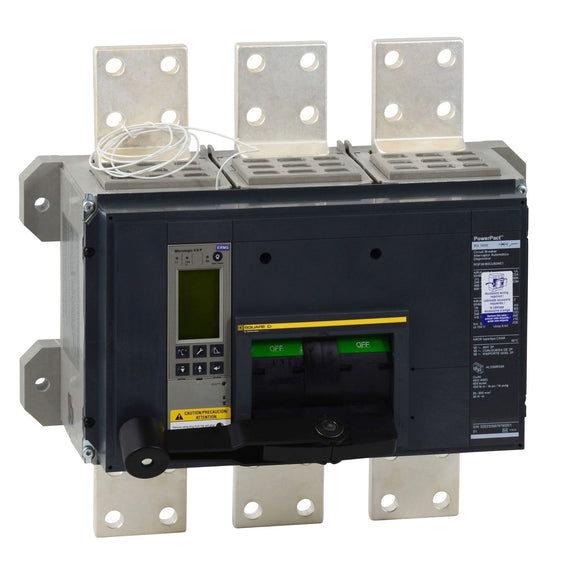

RJF36200U63AE1 - Square D Molded Case Circuit Breakers

Part Number:
RJF36200U63AE1

Manufacturer:
Square D

Family:
Powerpact

Pole:
3

Amp
2000

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
Bolt-On

Type:
RJF

Functions:
LSI - Long-Time, Short-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
65kA@480V

Dimensions (HxWxD):
16.24x 16.54x 14.49

Weight:
1.32 lbs

Additional Details

Trip Unit Technology:
Electronic, power, Micrologic 5.0 P, LSI

Line Rated Current:
2000 Amp

Mounting Mode:
Unit mount busbar

Breaking Capacity Code:
J

Electrical Connection:
Busbar connection line / Busbar connection load

Continuous Current Rating:
80%

Control Type:
Operating Handle

AWG Gauge:
AWG 3/0...750 kcmil aluminium/copper

RJF36200U63AE1 - Square D Molded Case Circuit Breakers
Schneider Electric,Square D, Powerpact, type RJF, 3P, 3PH, 2000A, 600V, 65kA@480V, UL listed, high interrupting capacity, bolt-on, complete with micrologic interchangeable power 5.0P trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, solid state electronic.
