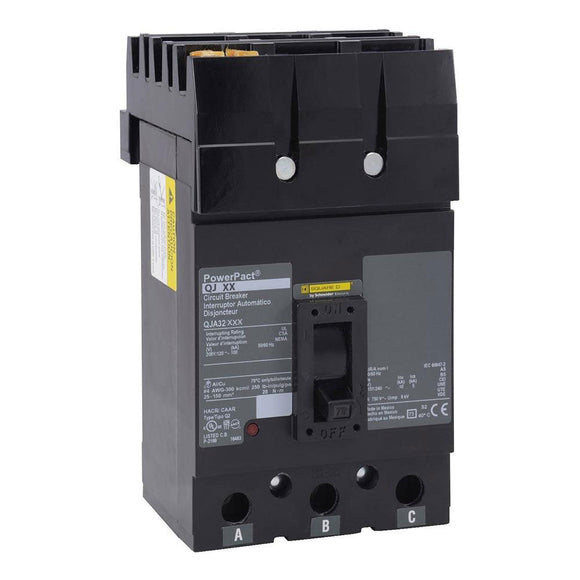

QJA32200 Square D Circuit Breaker

QJA32200 - Square D I-Line Circuit Breaker

Part Number:
QJA32200

Manufacturer:

Schneider Electric / Square D

Family:
I-Line

Pole:
3

Amp
200

Volt:
240

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
QJA

Functions:
LI - Long-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
100kA@240V

Dimensions (HxWxD):
6.47x 4.5x 3.93

Weight:
6.65 lbs

Additional Details

Frame Type:
Q-Frame

Trip Unit Technology:
Thermal-magnetic

Line Rated Current:
200 Amp

Mounting Mode:
I-Line bracket

Breaking Capacity Code:
J

Electrical Connection:
I-Line connection line/Lugs load

Magnetic Hold Current:
1200 Amp

Continuous Current Rating:
80%

Control Type:
Operating handle

QJA32200 - Square D I-Line Circuit Breaker
Square D, I-Line, type QJA, 3P, ABC phase circuit configuration, 3PH, 200A, 240V, 100kA@240V, UL listed, current limiting, i-line style plug-in, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic electronic, molded case circuit breakers.
