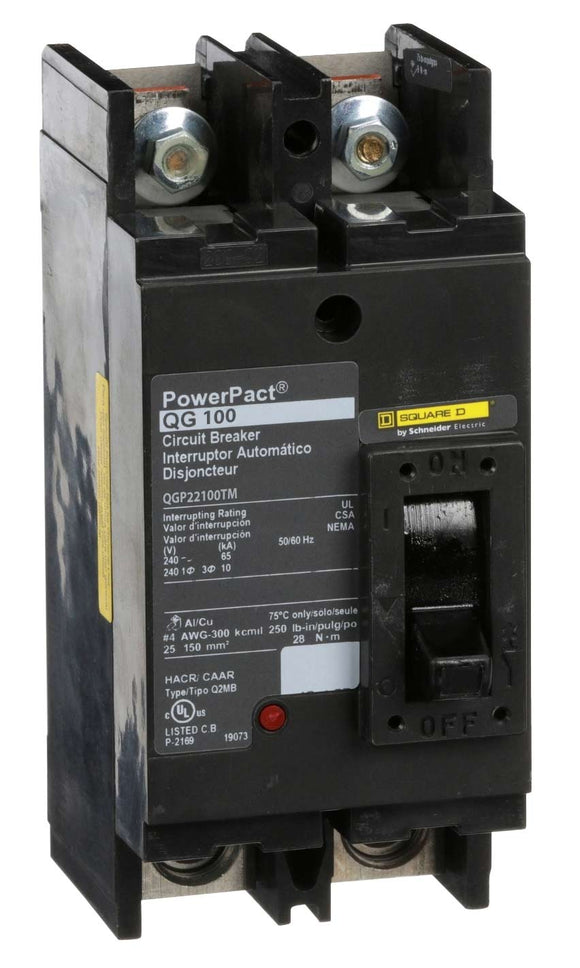

QGP22100TM Square D Circuit Breaker
QGP22100TM - Square D Meter-Pak Circuit Breaker
Part Number:
QGP22100TM
Manufacturer:
Schneider Electric / Square D
Family:
Meter-Pak
Pole:
2
Amp
100
Volt:
240
Phase:
1
Category:
Molded Case / 2-Pole
Connection:
Bolt-On
Type:
QGP
Functions:
LI - Long-Time and Instantaneous
Protection:
Thermal Magnetic
AIC Ratings:
65kA@240V
Dimensions (HxWxD):
4.80x 6.18x 9.88
Weight:
4.9 lbs
Additional Details
Trip Unit Technology:
Thermal-magnetic
Line Rated Current:
100 Amp
Mounting Mode:
Unit mount lug
Breaking Capacity Code:
G
Electrical Connection:
Terminal nut line/Lugs load
Magnetic Hold Current:
1200 Amp
Continuous Current Rating:
80%
Control Type:
Operating handle
QGP22100TM - Square D Meter-Pak Circuit Breaker
Square D, Meter-Pak, type QGP, 2P, 1PH, 100A, 120/240V, 65kA@240V, UL listed, very high interrupting capacity, bolt-on, for use in 225A MPL lever bypass METER-PAK metering equipment, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals.
