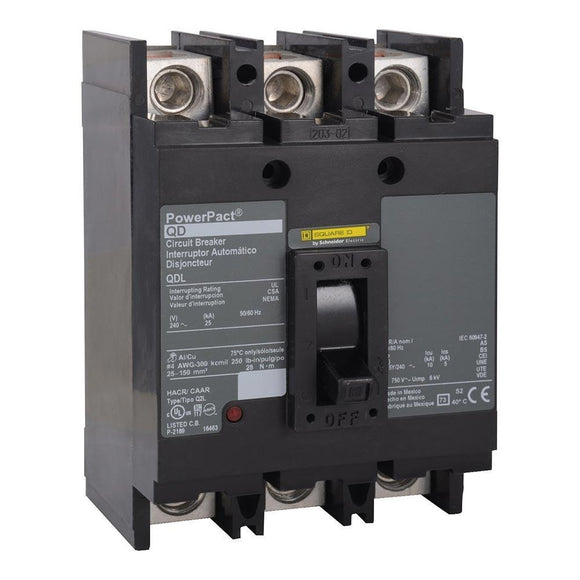

QDL32090 Square D Circuit Breaker

Part Number:QDL32090

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp90

Volt:240

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:QDL

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:25kA@240V

Dimensions (HxWxD):6.47x 4.5x 3.93

Weight:4.9 lbs

Additional Details

Frame Type:Q-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:90 Amp

Mounting Mode:Unit mount lug

Breaking Capacity Code:D

Electrical Connection:Lugs load/Lugs line

Magnetic Hold Current:1000 Amp

Continuous Current Rating:80%

Control Type:Operating handle

QDL32090 - Square D Powerpact Circuit BreakerSchneider Electric / Square D, Powerpact, type QDL, 3P, 3PH, 90A, 240V, 25kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
