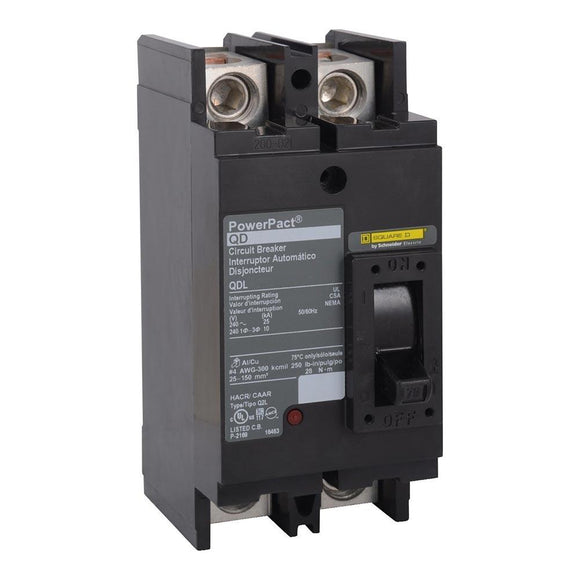

Schneider Electric QDL22225

QDL22225 Square D Circuit Breaker

  • $465.95
    Unit price per

Condition: New

4 Available

QDL22225 - Square D Powerpact Circuit Breaker

Part Number:QDL22225

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:2

Amp225

Volt:240

Phase:1

Category:

Molded Case / 2-Pole

Connection:Feed-Thru

Type:QDL

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:25kA@240V

Dimensions (HxWxD):6.47x 3x 3.93

Weight:4.9 lbs

Additional Details

Frame Type:Q-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:225 Amp

Mounting Mode:Unit mount lug

Breaking Capacity Code:D

Electrical Connection:Lugs load/Lugs line

Magnetic Hold Current:1200 Amp

Continuous Current Rating:80%

Control Type:Operating handle

QDL22225 - Square D Powerpact Circuit BreakerSchneider Electric / Square D, Powerpact, type QDL, 2P, 1PH, 225A, 240V, 25kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
