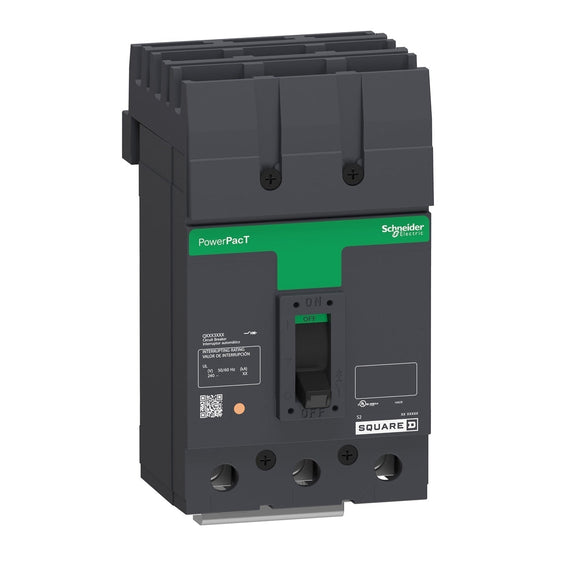

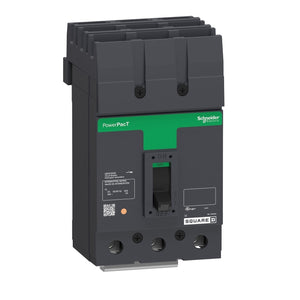

QDA32080 Square D Circuit Breaker
QDA32080 - Square D I-Line Circuit Breaker
Part Number:
QDA32080
Manufacturer:
Schneider Electric / Square D
Family:
I-Line
Pole:
3
Amp
80
Volt:
240
Phase:
3
Category:
Molded Case / 3-Pole
Connection:
I-Line Style Plug-In
Type:
QDA
Functions:
LI - Long-Time and Instantaneous
Protection:
Thermal Magnetic
AIC Ratings:
25kA@240V
Dimensions (HxWxD):
6.47x 4.5x 3.93
Weight:
4.9 lbs
Additional Details
Frame Type:
Q-Frame
Trip Unit Technology:
Thermal-magnetic
Line Rated Current:
80 Amp
Mounting Mode:
I-Line bracket
Breaking Capacity Code:
D
Electrical Connection:
I-Line connection line/Lugs load
Magnetic Hold Current:
1000 Amp
Continuous Current Rating:
80%
Control Type:
Operating handle
QDA32080 - Square D I-Line Circuit Breaker
Square D, I-Line, type QDA, 3P, ABC phase connection, 3PH, 80A, 240V, 25kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic.
