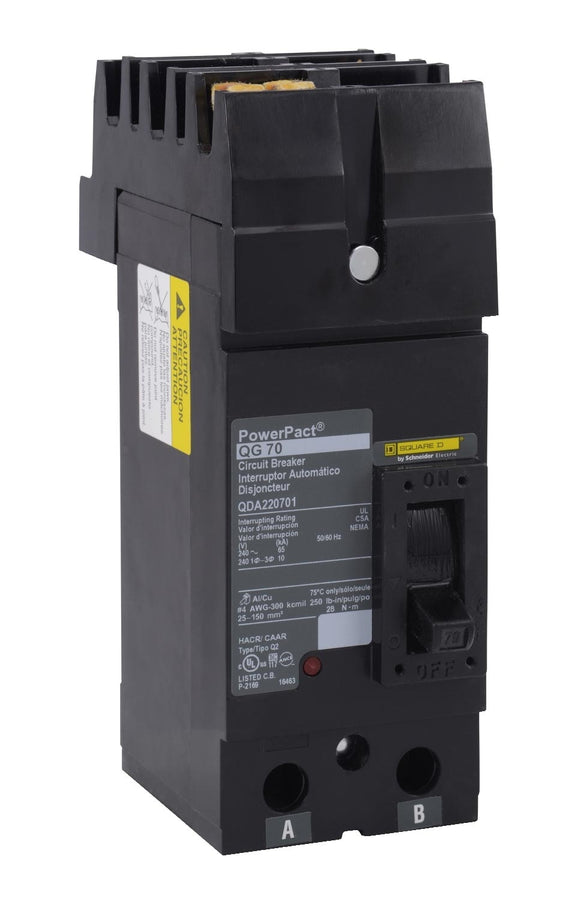

QDA220701 Square D Circuit Breaker

Part Number:QDA220701

Manufacturer:

Schneider Electric / Square D

Family:I-Line

Pole:2

Amp70

Volt:240

Phase:1

Category:

Molded Case / 2-Pole

Connection:I-Line Style Plug-In

Type:QDA

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:25kA@240V

Dimensions (HxWxD):6.47x 4.5x 3.93

Weight:4.9 lbs

Additional Details

Frame Type:Q-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:70 Amp

Mounting Mode:I-Line bracket

Breaking Capacity Code:D

Electrical Connection:I-Line connection line/Lugs load

Magnetic Hold Current:1000 Amp

Continuous Current Rating:80%

Control Type:Operating handle

QDA220701 - Square D I-Line Circuit BreakerSquare D, I-Line, type QDA, 2P, A & B phase connection, 1PH, 70A, 240V, 25kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.
