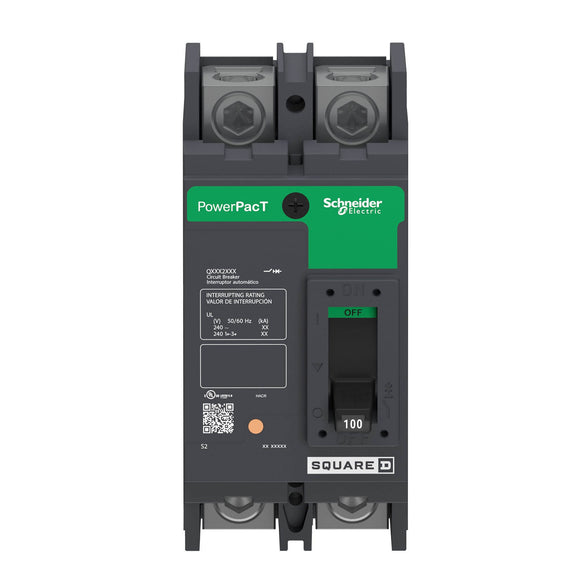

QBL22100 Square D Circuit Breaker

$359.95
Unit price per

Condition: New

QBL22100 - Square D Molded Case Circuit Breakers

Part Number:QBL22100

Manufacturer:Square D

Family:Powerpact

Pole:2

Amp100

Volt:240

Phase:1

Category:

Molded Case / 2-Pole

Connection:Feed-Thru

Type:QBL

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:10kA@240V

Dimensions (HxWxD):6.47x 3x 3.93

Additional Details

Frame Type:Q-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:100 Amp

Magnetic Hold Current:1200 A

Mounting Mode:Unit Mount Lug

Breaking Capacity Code:B

Electrical Connection:Lugs line / Lugs load

Continuous Current Rating:80%

Control Type:Operating Handle

QBL22100 - Square D Molded Case Circuit BreakersSchneider Electric / Square D, Powerpact, type QBL, 2P, 1PH, 100A, 240V, 10kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
