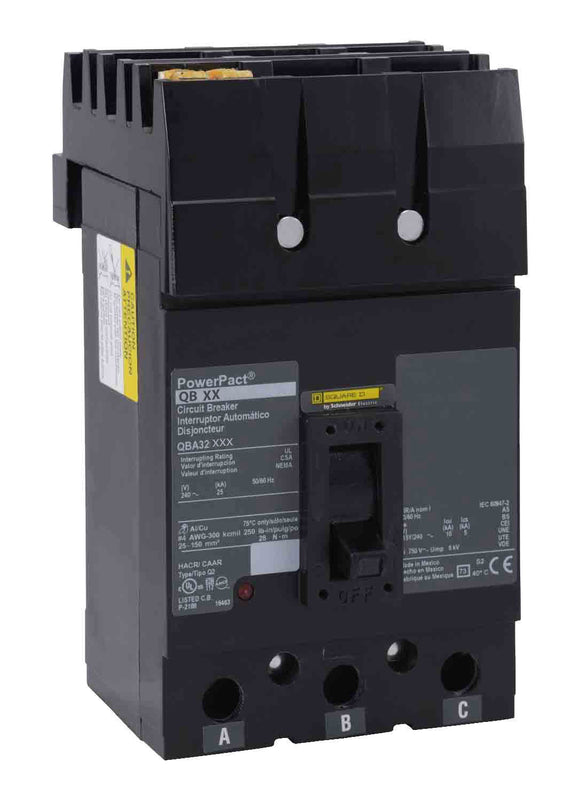

QBA32225 Square D Circuit Breaker
QBA32225 - Square D Molded Case Circuit Breakers
Part Number:
QBA32225
Manufacturer:
Square D
Family:
I-Line
Pole:
3
Amp
225
Volt:
240
Phase:
3
Category:
Molded Case / 3-Pole
Connection:
I-Line Style Plug-In
Type:
QBA
Functions:
LI - Long-Time and Instantaneous
Protection:
Thermal Magnetic
AIC Ratings:
10kA@240V
Dimensions (HxWxD):
6.47x 4.5x 3.93
Additional Details
Frame Type:
Q-Frame
Trip Unit Technology:
Thermal-magnetic
Line Rated Current:
225 Amp
Magnetic Hold Current:
1200 A
Mounting Mode:
I-Line bracket
Breaking Capacity Code:
B
Electrical Connection:
I-Line connection line / Lugs load
Continuous Current Rating:
80%
Control Type:
Operating Handle
QBA32225 - Square D Molded Case Circuit Breakers
Square D, I-Line, type QBA, 3P, ABC phase connection, 3PH, 225A, 240V, 10kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.
