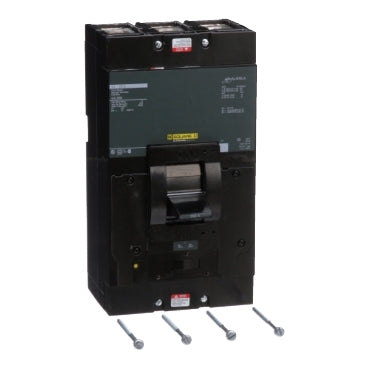

Q4L3250 Square D Circuit Breaker
Part Number:Q4L3250
Manufacturer:Square D
Family:Powerpact
Pole:3
Amp250
Volt:240
Phase:3
Category:
Molded Case / 3-Pole
Connection:I-Line Style Plug-In
Type:Q4L
Functions:LI - Long-Time and Instantaneous
Protection:Solid State
AIC Ratings:25kA@240V
Dimensions (HxWxD):11.0x 6.0x 5.84
Additional Details
Trip Unit Technology:Electronic, basic, ET 1.0I, I
Line Rated Current:250 Amp
Mounting Mode:Unit Mount
Breaking Capacity Code:Q4
Electrical Connection:Lugs line / Lugs load
Q4L3250 - Square D Molded Case Circuit BreakersSquare D, Q4L Series, type Q4L, 3P, 3PH, 250A, 240V, 25kA@240V, standard interrupting capacity, 40 degree C, feed-thru, LI - Long-Time and Instantaneous trip functions, line & load side lug terminals, thermal magnetic, molded case circuit breakers.
