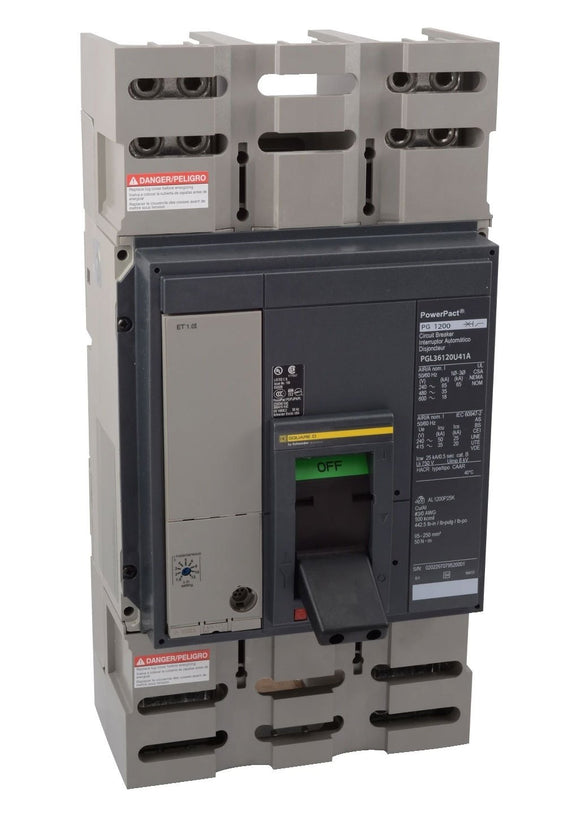

PGL36120U41A Square D Circuit Breaker

$11,324.95
Unit price per

Condition: New

PGL36120U41A - Square D Molded Case Circuit Breakers

Part Number:PGL36120U41A

Manufacturer:Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp1200

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:PGL

Functions:LI - Long-Time and Instantaneous

Protection:Solid State

AIC Ratings:35kA@480V

Dimensions (HxWxD):16.16x 8.27x 8.05

Weight:32 lbs

Additional Details

Trip Unit Technology:Electronic, ammeter, MicroLogic 3.0 A, LI

Line Rated Current:1200 Amp

Breaking Capacity CodeG

Electrical Connection:Lugs load / Lugs line

Continuous Current Rating80%

Control Type:Toggle

AWG Gauge:4 x AWG 3/0...500 kcmil aluminium/copper

PGL36120U41A - Square D Molded Case Circuit BreakersSchneider Electric / Square D, Powerpact, type PGL, 3P, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, feed-thru, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers
