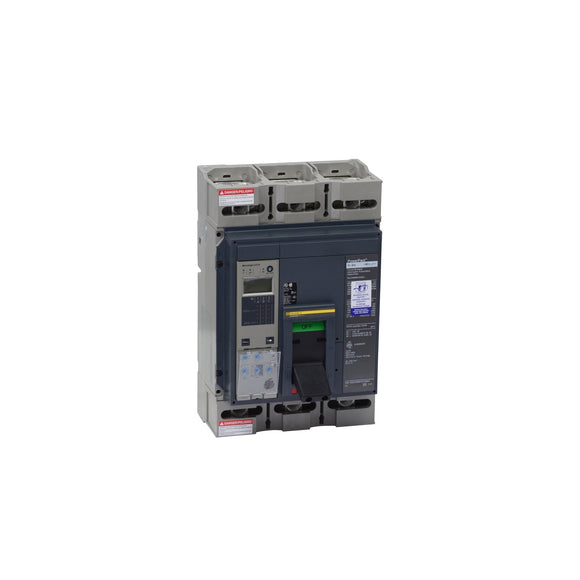

PGL36060CU44A Square D Circuit Breaker

Part Number:PGL36060CU44A

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp600

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:PGL

Functions:LI - Long-Time and Instantaneous

Protection:Solid State

AIC Ratings:35kA@480V

Dimensions (HxWxD):12.87x 8.27x 8.03

Weight:32 lbs

Additional Details

Frame Type:P-Frame

Trip Unit Technology:Electronic, ammeter, MicroLogic 6.0 A, LSIG

Line Rated Current:600 Amp

Breaking Capacity Code:G

Electrical Connection:Lugs line / Lugs load

Continuous Current Rating:100%

Control Type:Toggle

AWG Gauge:3 x AWG 3/0...500 kcmil aluminium/copper

PGL36060CU44A - Square D Powerpact Circuit BreakerSchneider Electric,Square D, Powerpact, type PGL, 3P, 3PH, 600A, 600V, 35kA@480V, UL listed, standard interrupting capacity, feed-thru, 100% rated, complete with micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals.
