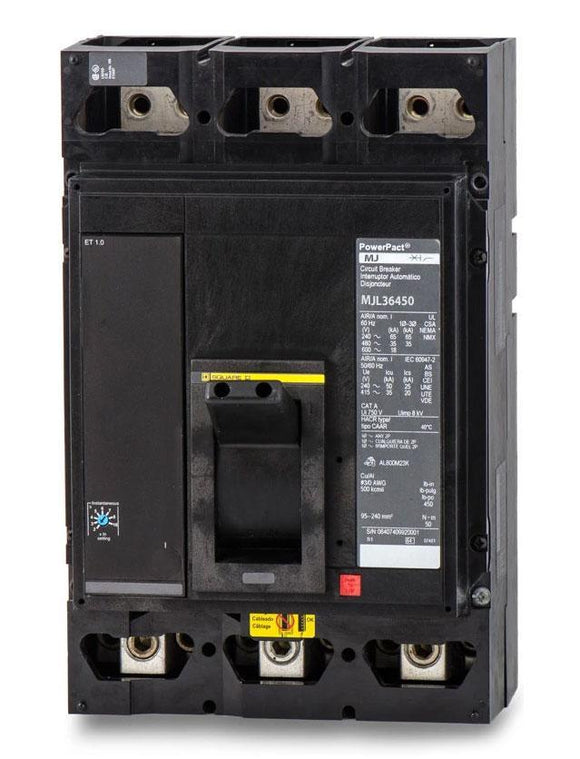

MJL36450 Square D Circuit Breaker

$5,641.95
Unit price per

Condition: New

MJL36450 - Square D Molded Case Circuit Breakers

Part Number:MJL36450

Manufacturer:Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp450

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:MJL

Functions:LI - Long-Time and Instantaneous

Protection:Solid State

AIC Ratings:65kA@480V

Dimensions (HxWxD):12.86x 8.27x 8.05

Weight:29 lbs

Additional Details

Trip Unit Technology:Electronic, basic, ET 1.0

Line Rated Current:450 Amp

Mounting Mode:Unit mount lug

Breaking Capacity CodeJ

Electrical Connection:Lugs load / Lugs line

Continuous Current Rating80%

Control Type:Operating handle

AWG Gauge:3 x AWG 3/0...3 x 500 kcmil aluminium/copper

MJL36450 - Square D Molded Case Circuit BreakersSchneider Electric / Square D, Powerpact, type MJL, 3P, 3PH, 450A, 600V, 25KA@600V, 65KA@480V, 100KA@240V, UL listed, current limiting, feed-thru, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
