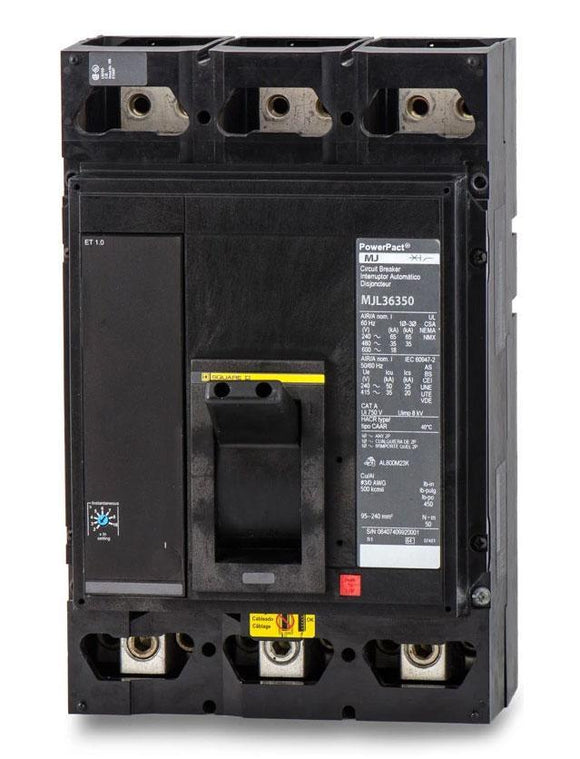

MJL36350 Square D Circuit Breaker
Part Number:MJL36350
Manufacturer:Schneider Electric / Square D
Family:Powerpact
Pole:3
Amp350
Volt:600
Phase:3
Category:
Molded Case / 3-Pole
Connection:Feed-Thru
Type:MJL
Functions:LI - Long-Time and Instantaneous
Protection:Solid State
AIC Ratings:65kA@480V
Dimensions (HxWxD):12.86x 8.27x 8.05
Weight:29 lbs
Additional Details
Trip Unit Technology:Electronic, basic, ET 1.0
Line Rated Current:350 Amp
Mounting Mode:Unit mount lug
Breaking Capacity CodeJ
Electrical Connection:Lugs line / Lugs load
Continuous Current Rating80%
Control Type:Operating handle
AWG Gauge:3 x AWG 3/0...3 x 500 kcmil aluminium/copper
MJL36350 - Square D Molded Case Circuit BreakersSchneider Electric / Square D, Powerpact, type MJL, 3P, 3PH, 350A, 600V, 25KA@600V, 65KA@480V, 100KA@240V, UL listed, current limiting, feed-thru, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
