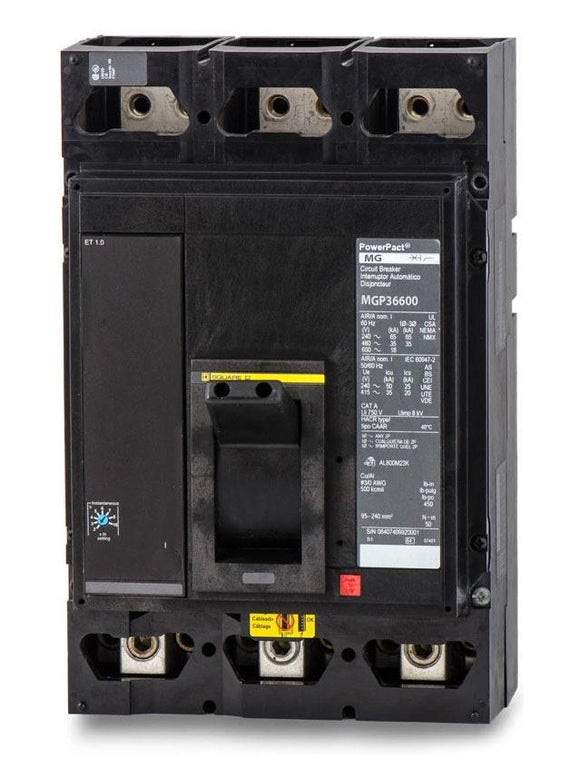

MGP36600 Square D Circuit Breaker

$4,624.95
Unit price per

Condition: New

MGP36600 - Square D Molded Case Circuit Breakers

Part Number:
MGP36600

Manufacturer:
Schneider Electric / Square D

Family:
Powerpact

Pole:
3

Amp
600

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
Bolt-On

Type:
MGP

Functions:
LI - Long-Time and Instantaneous

Protection:
Solid State

AIC Ratings:
35kA@480V

Dimensions (HxWxD):
12.86x 8.27x 8.05

Weight:
29 lbs

Additional Details

Trip Unit Technology:
Electronic, basic, ET 1.0

Line Rated Current:
600 Amp

Maximum Operating Voltage:
600V AC

Mounting Mode:
Unit mount lug

Breaking Capacity Code
G

Electrical Connection:
Terminal nut line / Lugs load

Continuous Current Rating
80%

Control Type:
Operating handle

AWG Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper

MGP36600 - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type MGP, 3P, 3PH, 600A, 600V, 18kA@600V, 35kA@480V, 65kA@240V, UL listed, high interrupting capacity, bolt-on, load side lugs, solid state electronic, molded case circuit breakers
