Schneider Electric MGL36350

MGL36350 Square D Circuit Breaker

  • $3,771.95
    Unit price per

Condition: New

4 Available

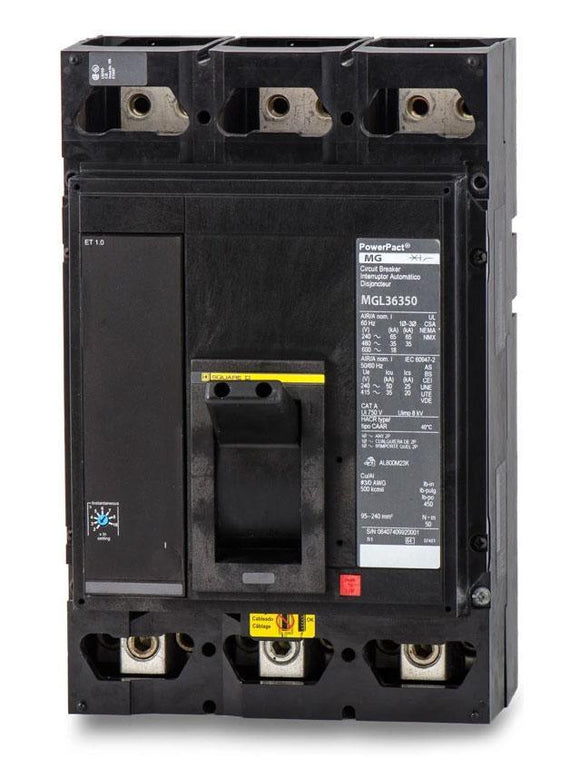

MGL36350 - Square D Molded Case Circuit Breakers

Part Number:MGL36350

Manufacturer:Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp350

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:MGL

Functions:LI - Long-Time and Instantaneous

Protection:Solid State

AIC Ratings:35kA@480V

Dimensions (HxWxD):12.86x 8.27x 8.05

Weight:29 lbs

Additional Details

Trip Unit Technology:Electronic, basic, ET 1.0

Line Rated Current:350 Amp

Mounting Mode:Unit mount lug

Breaking Capacity CodeG

Electrical Connection:Lugs line / Lugs load

Continuous Current Rating80%

Control Type:Operating handle

AWG Gauge:3 x AWG 3/0...3 x 500 kcmil aluminium/copper

MGL36350 - Square D Molded Case Circuit BreakersSchneider Electric / Square D, Powerpact, type MGL, 3P, 3PH, 350A, 600V, 35kA@480V, UL listed, high interrupting capacity, feed-thru, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
