MGA36400 Square D Circuit Breaker

$5,324.95
Unit price per

Condition: New

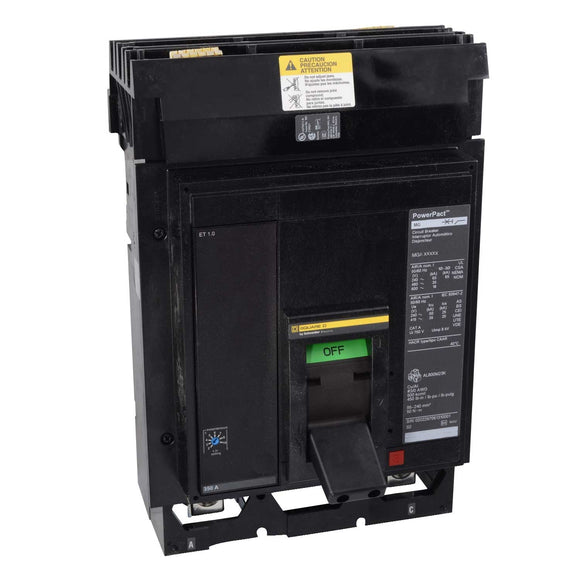

MGA36400 - Square D Powerpact Circuit Breaker

Part Number:
MGA36400

Manufacturer:

Schneider Electric / Square D

Family:
Powerpact

Pole:
3

Amp
400

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
MGA

Functions:
LI - Long-Time and Instantaneous

Protection:
Solid State

AIC Ratings:
35kA@480V

Dimensions (HxWxD):
12.86x 0.32x 8.27

Weight:
29 lbs

Additional Details

Frame Type:
M-Frame

Trip Unit Technology:
Electronic, basic, ET 1.0,

Line Rated Current:
400 Amp

Mounting Mode:
I-Line bracket

Breaking Capacity Code:
G

Electrical Connection:
I-Line connection line / Lugs load

Continuous Current Rating:
80%

Control Type:
Toggle

AWG Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper

MGA36400 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type MGA, 3P, ABC phase connection, 3PH, 400A, 600V, 35kA@480V, UL listed, high interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state, molded case circuit breakers.
