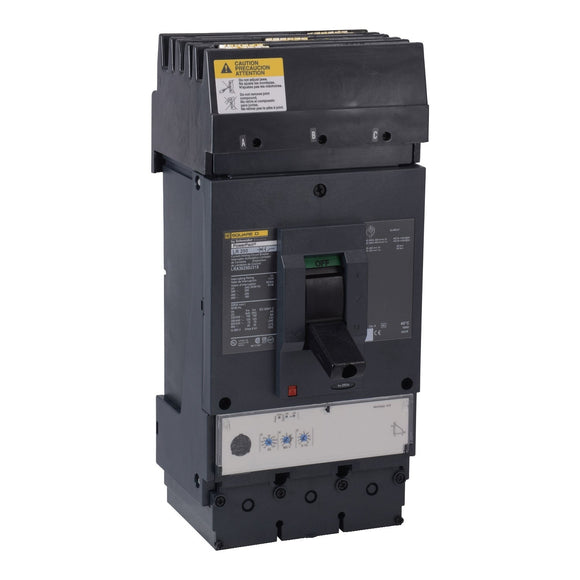

LRA36400U31X Square D Circuit Breaker

$8,124.95
Unit price per

Condition: New

LRA36400U31X - Square D Powerpact Circuit Breaker

Part Number:
LRA36400U31X

Manufacturer:

Schneider Electric / Square D

Family:
Powerpact

Pole:
3

Amp
400

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
LRA

Functions:
LI - Long-Time and Instantaneous

Protection:
Solid State

AIC Ratings:
200kA@480V

Dimensions (HxWxD):
14.7x 5.94x 6.61

Weight:
13.67 lbs

Additional Details

Frame Type:
L-Frame

Trip Unit Technology:
Electronic, standard, Micrologic 3.3 S, LSI

Line Rated Current:
400 Amp

Mounting Mode:
I-Line bracket

Breaking Capacity Code:
R

Electrical Connection:
I-Line connection line / Lugs load

Continuous Current Rating:
80%

Control Type:
Toggle

AWG Gauge:
AWG 3/0...500 kcmil aluminium/copper

LRA36400U31X - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type LRA, 3P, 3PH, 400A, 600V, 200kA@480V, UL listed, i-line style plug-in, suitable for reverse connection, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers.
