Schneider Electric LLA36250U33X

LLA36250U33X Square D Circuit Breaker

  • $11,968.95
    Unit price per

Condition: New

4 Available

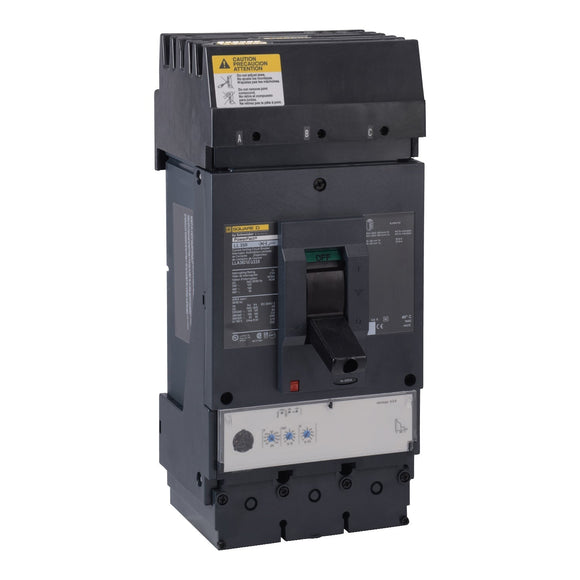

LLA36250U33X - Square D Powerpact Circuit Breaker

Part Number:
LLA36250U33X

Manufacturer:

Schneider Electric / Square D

Family:
Powerpact

Pole:
3

Amp
250

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
LLA

Functions:
LSI - Long-Time, Short-Time and Instantaneous

Protection:
Solid State

Frame Type:
L Frame

AIC Ratings:
65kA@480V

Dimensions (HxWxD):
13.39x 5.51x 4.33

Weight:
13.67 lbs

Additional Details

Frame Type:
L-Frame

Trip Unit Technology:
Electronic, standard, Micrologic 3.3 S, LSI

Line Rated Current:
250 Amp

Mounting Mode:
I-Line bracket

Breaking Capacity Code:
L

Electrical Connection:
I-Line connection line / Lugs load

Continuous Current Rating:
80%

Control Type:
Toggle

AWG Gauge:
AWG 2...600 kcmil copper / AWG 2...500 kcmil aluminium

LLA36250U33X - Square D Powerpact Circuit Breaker
Schneider Electric,Square D, Powerpact, type LLA, 3P, 3PH, 250A, 600V, 100kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic.
