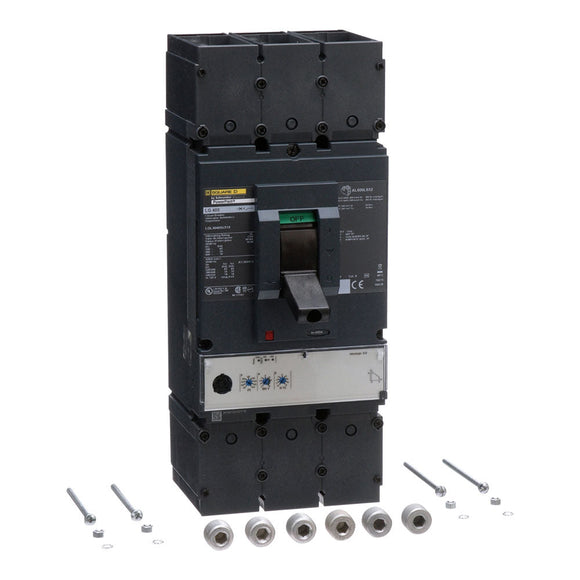

Schneider Electric LGL36400U31X

LGL36400U31X Square D Circuit Breaker

  • $3,819.95
    Unit price per

Condition: New

4 Available

LGL36400U31X - Square D Molded Case Circuit Breakers

Part Number:LGL36400U31X

Manufacturer:Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp400

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:LGL

Functions:LI - Long-Time and Instantaneous

Protection:Solid State

AIC Ratings:35kA@480V

Dimensions (HxWxD):13.39x 5.51x 4.33

Weight:13.67 lbs

Additional Details

Trip Unit Technology:Electronic, standard, MicroLogic 3.3, LI

Line Rated Current:400 Amp

Mounting Mode:Unit mount lug

Breaking Capacity CodeG

Electrical Connection:Lugs line / Lugs load

Continuous Current Rating80%

Control Type:Toggle

AWG Gauge:2 x AWG 2/0...500 kcmil aluminium/copper

LGL36400U31X - Square D Molded Case Circuit BreakersSchneider Electric / Square D, Powerpact, type LGL, 3P, 3PH, 400A, 600V, 18kA@600V, 35kA@480V, 65kA@240V, UL listed, high interrupting capacity, feed-thru, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers
