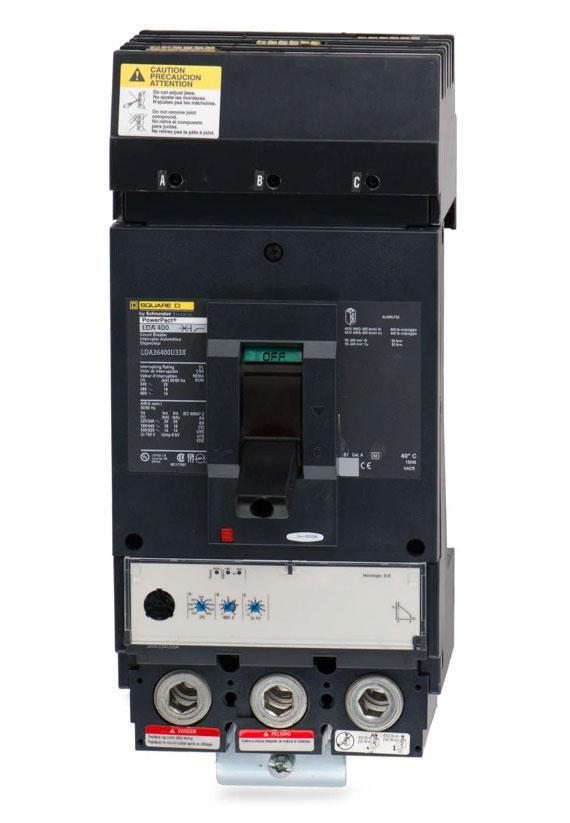

LDA36400U33X Square D Circuit Breaker

LDA36400U33X - Square D Molded Case Circuit Breakers

Part Number:
LDA36400U33X

Manufacturer:
Schneider Electric / Square D

Family:
Powerpact

Pole:
3

Amp
400

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
LDA

Functions:
LSI - Long-Time, Short-Time and Instantaneous

Protection:
Solid State

AIC Ratings:
18kA@480V

Dimensions (HxWxD):
13.39x 5.51x 4.33

Weight:
13.67 lbs

Additional Details

Trip Unit Technology:
Electronic, standard, MicroLogic 3.3 S, LSI

Line Rated Current:
400 Amp

Mounting Mode:
I-Line bracket

Breaking Capacity Code
D

Electrical Connection:
I-Line connection line / Lugs load

Continuous Current Rating
80%

Control Type:
Toggle

AWG Gauge:
AWG 3/0...500 kcmil aluminium/copper

LDA36400U33X - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type LDA, 3P, 3PH, 600A, 400V, 14kA@600V, 18kA@480V, 25kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers
