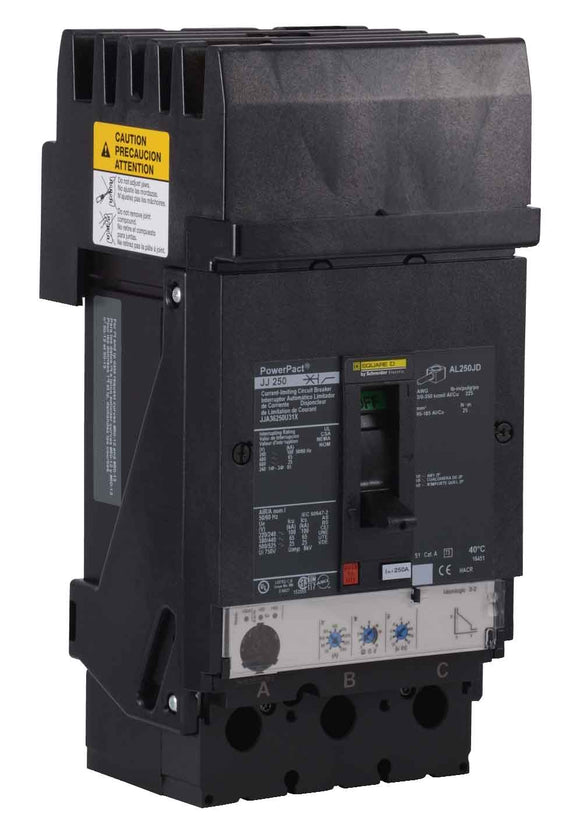

JJA36250U31X Square D Circuit Breaker
JJA36250U31X - Square D Powerpact Circuit Breaker
Part Number:
JJA36250U31X
Manufacturer:
Schneider Electric / Square D
Family:
Powerpact
Pole:
3
Amp
250
Volt:
600
Phase:
3
Category:
Molded Case / 3-Pole
Connection:
I-Line Style Plug-In
Type:
JJA
Functions:
LI - Long-Time and Instantaneous
Protection:
Thermal Magnetic
AIC Ratings:
65kA@480V
Dimensions (HxWxD):
11.48x 4.48x 5.87
Weight:
5.29 lbs
Additional Details
Protection Type:
Overload protection / Short-circuit protection
Frame Type:
J-Frame
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2, LI
Line Rated Current:
250 Amp
Mounting Mode:
I-Line bracket
Breaking Capacity Code:
J
Electrical Connection:
I-Line connection line / Lugs load
Continuous Current Rating:
80%
Control Type:
Toggle
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
JJA36250U31X - Square D Powerpact Circuit Breaker
Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 250A, 600V, 65kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip.
