JJA36200 Square D Circuit Breaker

$2,107.95
Unit price per

Condition: New

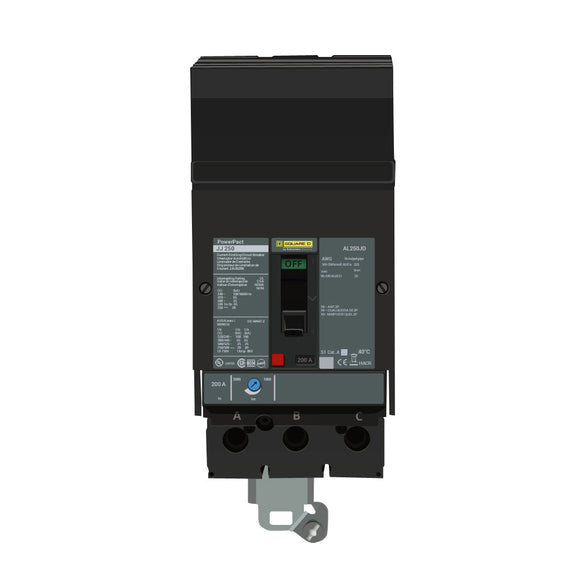

JJA36200 - Square D Powerpact Circuit Breaker

Part Number:
JJA36200

Manufacturer:

Schneider Electric / Square D

Family:
Powerpact

Pole:
3

Amp
200

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
JJA

Functions:
LI - Long-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
65kA@480V

Dimensions (HxWxD):
11.48x 4.48x 5.87

Weight:
5.29 lbs

Additional Details

Protection Type:
Overload protection / Short-circuit protection

Frame Type:
J-Frame

Trip Unit Technology:
Thermal-magnetic

Line Rated Current:
200 Amp

Mounting Mode:
I-Line bracket

Breaking Capacity Code:
J

Electrical Connection:
I-Line connection line / Lugs load

Magnetic Hold Current:
1000 Amp

Continuous Current Rating:
80%

Control Type:
Toggle

AWG Gauge:
AWG 4...AWG 4/0 aluminium/copper terminal

JJA36200 - Square D Powerpact Circuit Breaker
Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 200A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.
