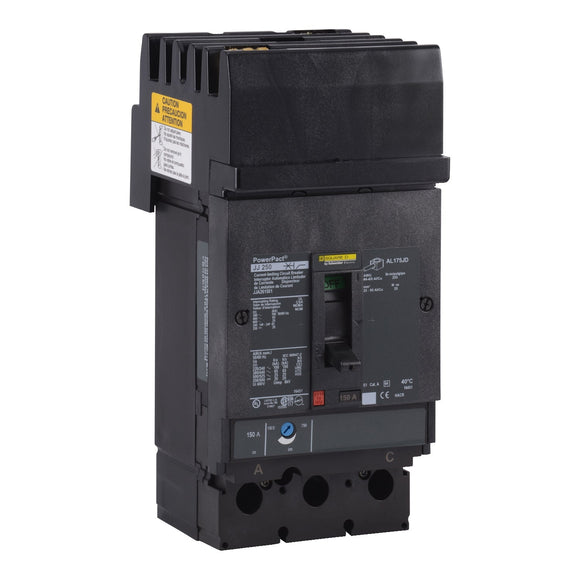

JJA262501 Square D Circuit Breaker
Part Number:JJA262501
Manufacturer:
Schneider Electric / Square D
Family:Powerpact
Pole:2
Amp250
Volt:600
Phase:1
Category:
Molded Case / 2-Pole
Connection:I-Line Style Plug-In
Type:JJA
Functions:LI - Long-Time and Instantaneous
Protection:Thermal Magnetic
AIC Ratings:65kA@480V
Dimensions (HxWxD):5.38x 8.13x 14.63
Weight:5.29 lbs
Additional Details
Protection Type:Overload protection / Short-circuit protection
Frame Type:J-Frame
Trip Unit Technology:Thermal-magnetic
Line Rated Current:250 Amp
Mounting Mode:I-Line bracket
Breaking Capacity Code:J
Electrical Connection:I-Line connection line / Lugs load
Magnetic Hold Current:1250 Amp
Continuous Current Rating:80%
Control Type:Toggle
AWG Gauge:AWG 3/0...350 kcmil aluminium/copper terminals
JJA262501 - Square D Powerpact Circuit BreakerSquare D, Powerpact, type JJA, 2P, A & B phase connection, 1PH, 250A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic
