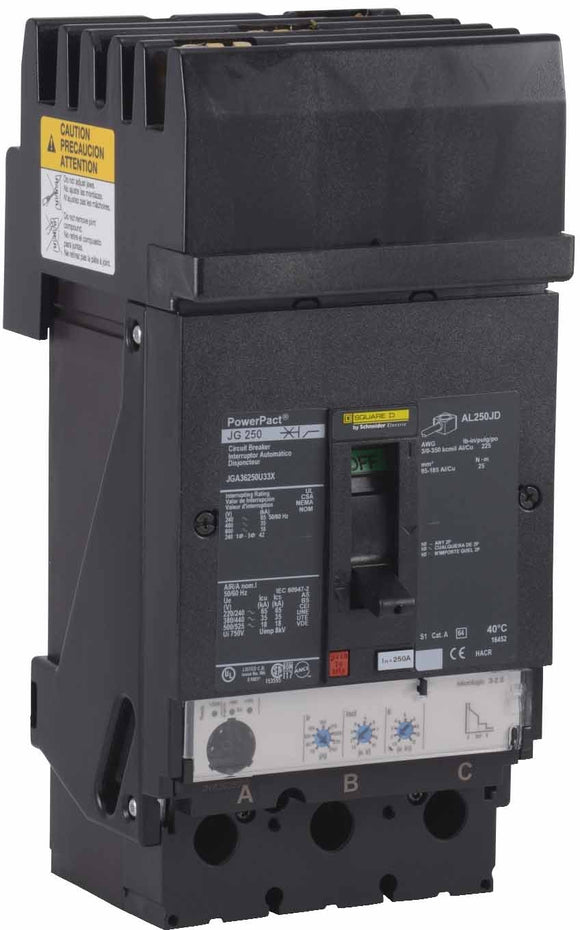

JGA36250U33X Square D Circuit Breaker
JGA36250U33X - Square D Molded Case Circuit Breakers
Part Number:
JGA36250U33X
Manufacturer:
Schneider Electric / Square D
Family:
Powerpact
Pole:
3
Amp
250
Volt:
600
Phase:
3
Category:
Molded Case / 3-Pole
Connection:
I-Line Style Plug-In
Type:
JGA
Functions:
LSI - Long-Time, Short-Time and Instantaneous
Protection:
Solid State
AIC Ratings:
35kA@480V
Dimensions (HxWxD):
7.52x 4.09x 3.39
Weight:
5.29 lbs
Additional Details
Protection Type:
Short-Circuit / Overload
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2 S, LSI
Line Rated Current:
250 Amp
Mounting Mode:
I-Line bracket
Breaking Capacity Code
G
Electrical Connection:
I-Line connection line / Lugs load
Continuous Current Rating
80%
Control Type:
Toggle
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
JGA36250U33X - Square D Molded Case Circuit Breakers
Square D, Powerpact, 3P, 3PH, 250A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, Molded Case Circuit Breaker
