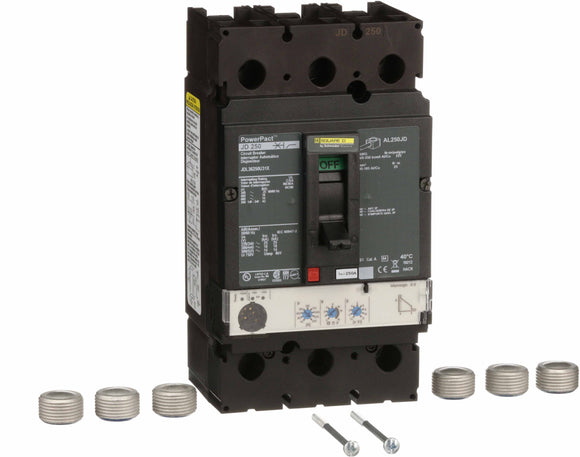

JDL36250U31X Square D Circuit Breaker

Part Number:JDL36250U31X

Manufacturer:Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp250

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:JDL

Functions:LI - Long-Time and Instantaneous

Protection:Solid State

AIC Ratings:18kA@480V

Dimensions (HxWxD):7.52x 4.09x 3.39

Weight:5.29 lbs

Additional Details

Protection Type:Short-Circuit / Overload

Trip Unit Technology:Electronic, standard, MicroLogic 3.2, LI

Line Rated Current:250 Amp

Mounting Mode:Unit mount lug

Breaking Capacity CodeD

Electrical Connection:Lugs line / Lugs load

Continuous Current Rating80%

Control Type:Toggle

AWG Gauge:AWG 3/0...350 kcmil aluminium/copper terminals

JDL36250U31X - Square D Molded Case Circuit BreakersSchneider Electric / Square D, Powerpact, 3P, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, line & load side lug terminals, solid state, Molded Case Circuit Breaker
