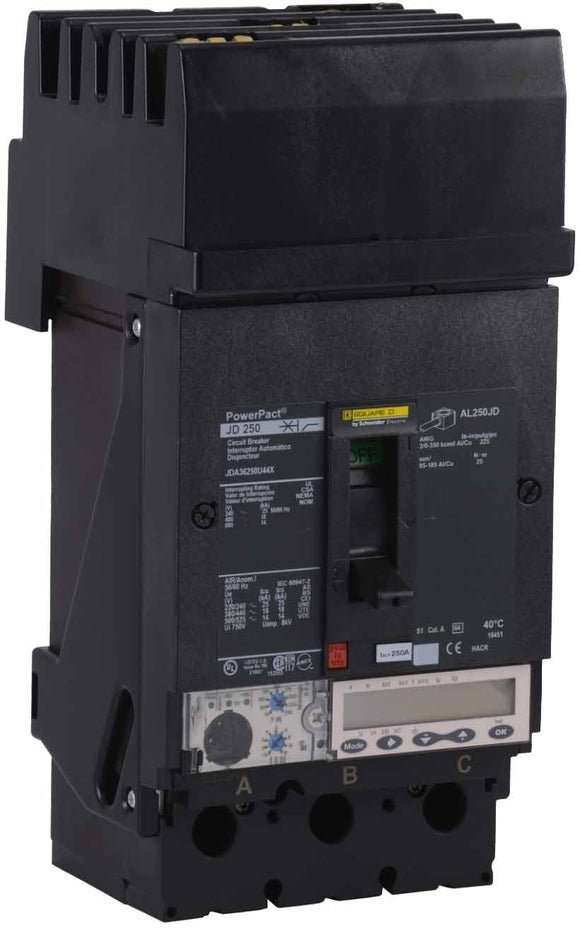

JDA36250U44X Square D Circuit Breaker
JDA36250U44X - Square D Molded Case Circuit Breakers
Part Number:
JDA36250U44X
Manufacturer:
Schneider Electric / Square D
Family:
Powerpact
Pole:
3
Amp
250
Volt:
600
Phase:
3
Category:
Molded Case / 3-Pole
Connection:
I-Line Style Plug-In
Type:
JDA
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
Protection:
Solid State
AIC Ratings:
18kA@480V
Dimensions (HxWxD):
7.52x 4.09x 3.39
Weight:
5.29 lbs
Additional Details
Protection Type:
Short-Circuit / Overload
Trip Unit Technology:
Electronic, ammeter, MicroLogic 6.2 A, LSIG
Line Rated Current:
250 Amp
Mounting Mode:
I-Line bracket
Breaking Capacity Code
D
Electrical Connection:
I-Line connection line / Lugs load
Magnetic Hold Current:
1250 Amp
Continuous Current Rating
80%
Control Type:
Toggle
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
JDA36250U44X - Square D Molded Case Circuit Breakers
Square D, type JDA, 3P, ABC phase connection, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, suitable for reverse connection, complete with micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, solid state electronic, Molded Case Circuit Breaker
