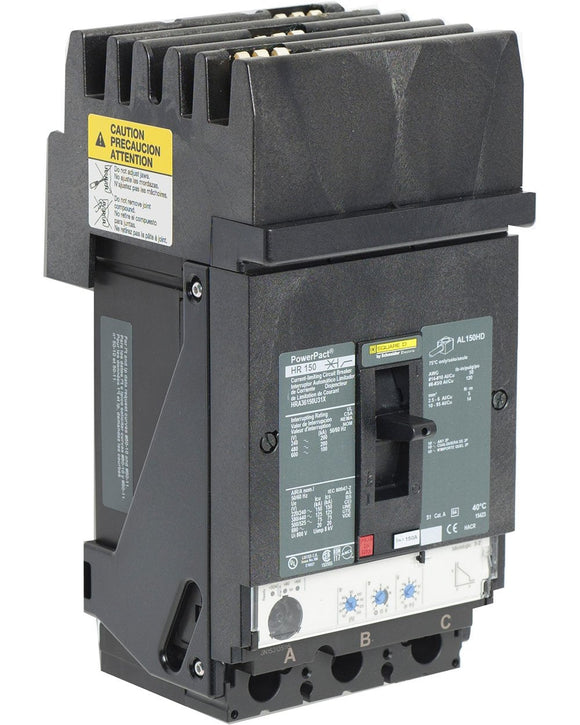

HRA36150U31X Square D Circuit Breaker

Part Number:HRA36150U31X

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp150

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:I-Line Style Plug-In

Type:HRA

Functions:LI - Long-Time and Instantaneous

Protection:Solid State

AIC Ratings:200kA@480V

Dimensions (HxWxD):9.73x 4.48x 4.36

Weight:4.85 lbs

Additional Details

Frame Type:H-Frame

Trip Unit Technology:Electronic, standard, MicroLogic 3.2, LI

Line Rated Current:150 A

Mounting Mode:I-Line bracket

Breaking Capacity Code:R

Electrical Connection:I-Line connection line / Lugs load

Continuous Current Rating:80%

Control Type:Toggle

AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal

HRA36150U31X - Square D Powerpact Circuit BreakerSchneider Electric / Square D, Powerpact, type HRA, 3P, 3PH, 150A, 600V, 2<span data-mce-fragment= 1 >00kA@48</span><span data-mce-fragment= 1 >0</span><span data-mce-fragment= 1 >V,</span> 100kA@600V, UL listed, I-line style plug-in, phase ABC, 80% rated, molded case circuit breakers.

Technical Specification
