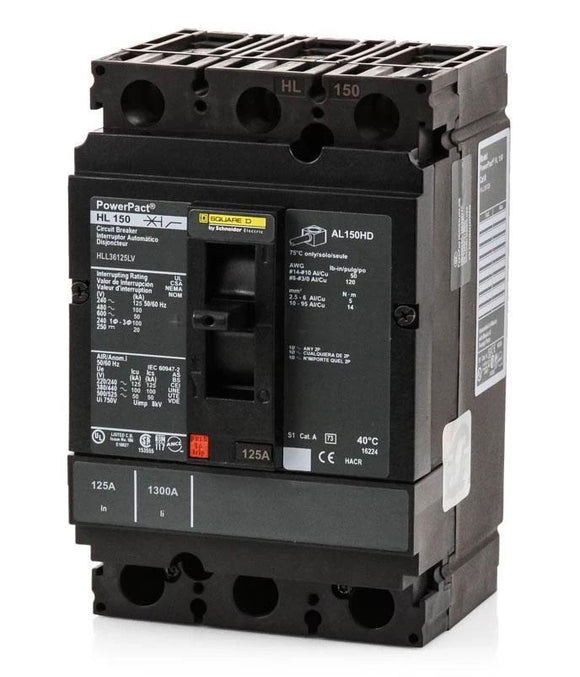

HLL36125LV Square D Circuit Breaker
Part Number:HLL36125LV
Manufacturer:Schneider Electric / Square D
Family:Powerpact
Pole:3
Amp125
Volt:600
Phase:3
Category:
Molded Case / 3-Pole
Connection:Feed-Thru
Type:HJL
Functions:LI - Long-Time and Instantaneous
Protection:Thermal Magnetic
AIC Ratings:100kA@480V
Dimensions (HxWxD):6.42x 4.09x 3.39
Weight:4.85 lbs
Additional Details
Trip Unit Technology:Thermal-magnetic
Line Rated Current:125 Amp
Mounting Mode:Unit mount lug
Breaking Capacity CodeL
Electrical Connection:Lugs line / Lugs load
Magnetic Hold Current:900 Amp
Continuous Current Rating80%
Control Type:Toggle
AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal
HLL36125LV - Square D Molded Case Circuit BreakersSchneider Electric / Square D, Powerpact, type HLL, 3P, 3PH, 125A, 600V, 100kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers
