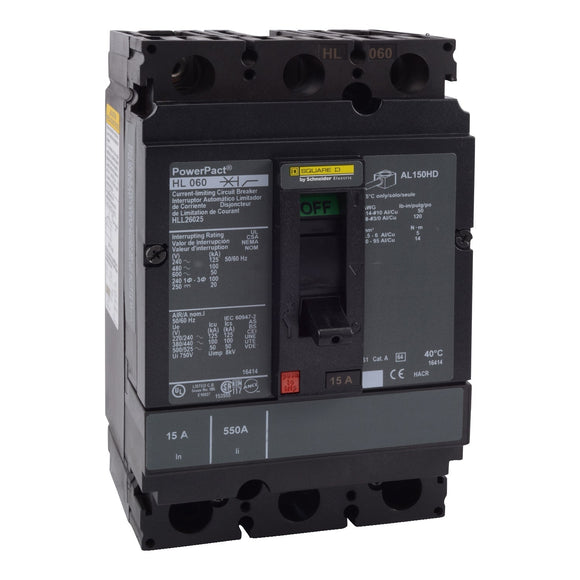

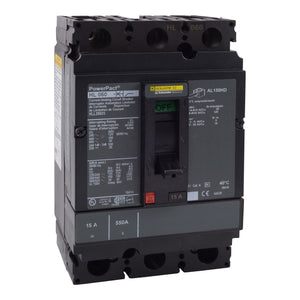

HLL26025 Square D Circuit Breaker

Part Number:HLL26025

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:2

Amp25

Volt:600

Phase:1

Category:

Molded Case / 2-Pole

Connection:Feed-Thru

Type:HLL

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:100kA@480V

Dimensions (HxWxD):6.42x 4.09x 3.39

Weight:4.85 lbs

Additional Details

Frame Type:H-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:25 A

Mounting Mode:Unit Mount Lug

Breaking Capacity Code:L

Electrical Connection:Lug line / Lugs load

Magnetic Hold Current:350 A

Continuous Current Rating:80%

Control Type:Toggle

AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal

HLL26025 - Square D Powerpact Circuit BreakerSchneider Electric,Square D, Powerpact, type HLL, 2P, 1PH, 25A, 600V, 100kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic.

Technical Specification
