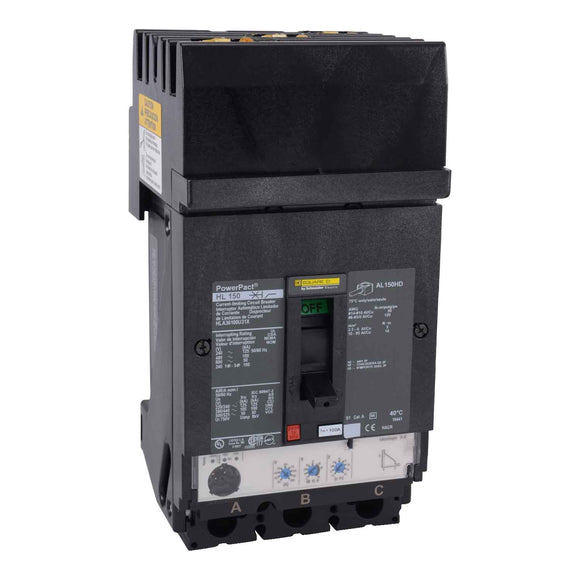

HLA36100U31X Square D Circuit Breaker
HLA36100U31X - Schneider Electric Molded Case
Circuit Breakers
Part Number:
HLA36100U31X
Manufacturer:
Schneider Square D Breakers
Family:
Powerpact
Pole:
3
Amp
100
Volt:
600
Phase:
3
Category:
Molded Case Breakers / 3-Pole
Connection:
I-Line Style Plug-In
Type:
H Frame
Functions:
LI - Long-Time and Instantaneous
Protection:
Solid State
AIC Ratings:
100kA@480V
Dimensions (HxWxD):
3.39 x 4.09 x 6.42
Weight:
4.85 lb
HLA36100U31X - Schneider Electric Molded Case
Circuit Breakers
Square Ds Powerpact HLA36100U31X is a 100A molded case circuit breaker, designed for three-phase applications with an ABC phase connection. Operating at 600V, it delivers reliable protection with an interrupting capacity of 100kA at 480V. The I-Line Style Plug-In design and UL listing enhance its versatility, making it suitable for reverse connection or 2P applications. Equipped with a micrologic standard 3.2 trip unit, providing non-interchangeable trip settings including Long-Time and Instantaneous functions, this breaker utilizes Solid State electronic technology for precise performance.
