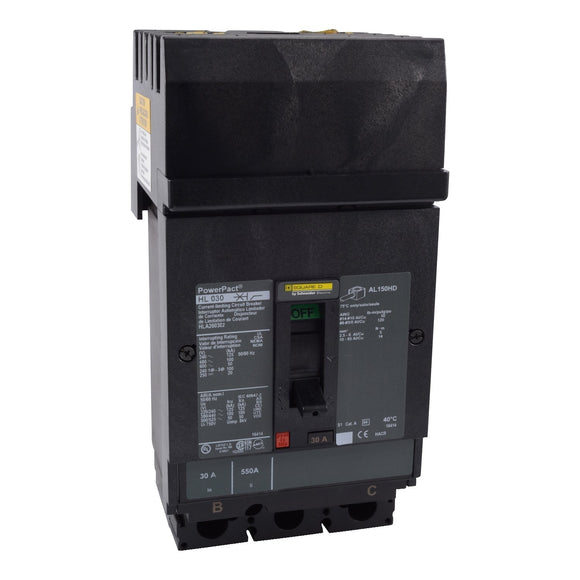

Schneider Electric HLA260302

HLA260302 Square D Circuit Breaker

  • $710.95
    Unit price per

Condition: New

4 Available

HLA260302 - Square D Molded Case Circuit Breakers

Part Number:HLA260302

Manufacturer:Square D

Family:Powerpact

Pole:2

Amp30

Volt:600

Phase:1

Category:

Molded Case / 2-Pole

Connection:I-Line Style Plug-In

Type:HLA

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:100kA@480V

Dimensions (HxWxD):6.42x 4.09x 3.39

Weight:4.85 lbs

Additional Details

Frame Type:H-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:50 Amp

Magnetic Hold Current:350 A

Mounting Mode:I-Line bracket

Breaking Capacity Code:G

Electrical Connection:I-Line connection line / Lugs load

Continuous Current Rating:80%

Control Type:Toggle

AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal

HLA260302 - Square D Molded Case Circuit BreakersSquare D, Powerpact, type HLA, 1PH, 2P, A & C phase connection, 30A, 600V, 100kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic.
