HJA36090 Square D Circuit Breaker

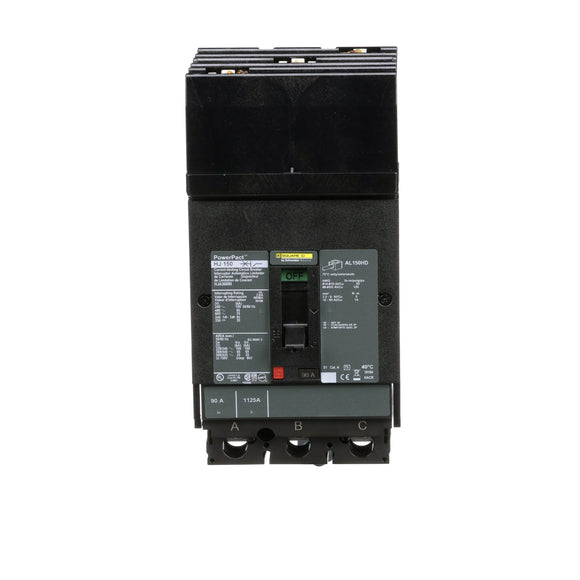

HJA36090 - Square D Powerpact Circuit Breaker
Part Number:
HJA36090
Manufacturer:
Schneider Electric / Square D
Family:
Powerpact
Pole:
3
Amp
90
Volt:
600
Phase:
3
Category:
Molded Case / 3-Pole
Connection:
I-Line Style Plug-In
Type:
HJA
Functions:
LI - Long-Time and Instantaneous
Protection:
Thermal Magnetic
AIC Ratings:
35kA@480V
Dimensions (HxWxD):
9.37x 4.48x 4.8
Weight:
4.85 lbs
Additional Details
Frame Type:
H-Frame
Trip Unit Technology:
Thermal-magnetic
Line Rated Current:
90 A
Mounting Mode:
I-Line bracket
Breaking Capacity Code
J
Electrical Connection:
I-Line connection line / Lugs load
Magnetic Hold Current:
800 A
Continuous Current Rating:
80%
Control Type:
Toggle
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
HJA36090 - Square D Powerpact Circuit Breaker
Square D, Powerpact, type HJA, 3PH, 3P, ABC phase connection, 90A, 600V, 65kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.
