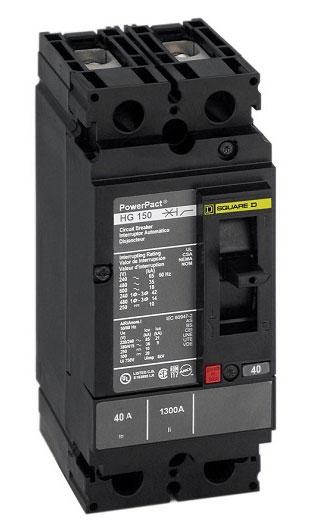

HGL26040 Square D Circuit Breaker
HGL26040 - Square D Powerpact Circuit Breaker
Part Number:
HGL26040
Manufacturer:
Schneider Electric / Square D
Family:
Powerpact
Pole:
2
Amp
40
Volt:
600
Phase:
1
Category:
Molded Case / 2-Pole
Connection:
Feed-Thru
Type:
HGL
Functions:
LI - Long-Time and Instantaneous
Protection:
Thermal Magnetic
AIC Ratings:
35kA@480V
Dimensions (HxWxD):
6.4x 2.74x 4.36
Weight:
4.85 lbs
Additional Details
Frame Type:
H-Frame
Trip Unit Technology:
Thermal-magnetic
Line Rated Current:
40 A
Mounting Mode:
Unit Mount Lug
Breaking Capacity Code
G
Electrical Connection:
Lugs line / Lugs load
Magnetic Hold Current:
400 A
Continuous Current Rating:
80%
Control Type:
Toggle
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
HGL26040 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type HGL, 2P, 1PH, 40A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip.
