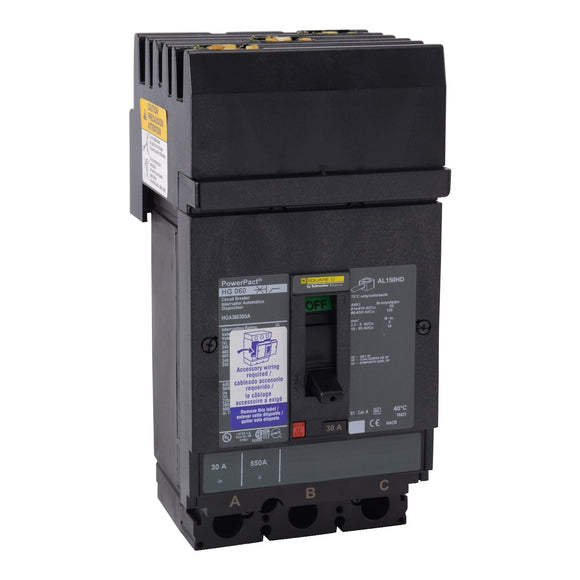

HGA36100U31X Square D Circuit Breaker

Part Number:HGA36100U31X

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp100

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:I-Line Style Plug-In

Type:HGA

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:35kA@480V

Dimensions (HxWxD):9.73x 4.48x 4.8

Weight:4.85 lbs

Additional Details

Frame Type:H-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:100 A

Mounting Mode:I-Line bracket

Breaking Capacity CodeG

Electrical Connection:l-Line Connection line / Lugs load

Magnetic Hold Current:900 A

Continuous Current Rating:80%

Control Type:Toggle

AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal

HGA36100U31X - Square D Powerpact Circuit BreakerSquare D Powerpact HGA 3-phase 3-pole ABC connection, 100A 600V, 35kA@480V interrupting capacity, i-line plug-in, UL certified, reverse fed compatible, with non-interchangeable trip, LI function (Long-Time & Instantaneous), thermal-magnetic molded case circuit breakers.
