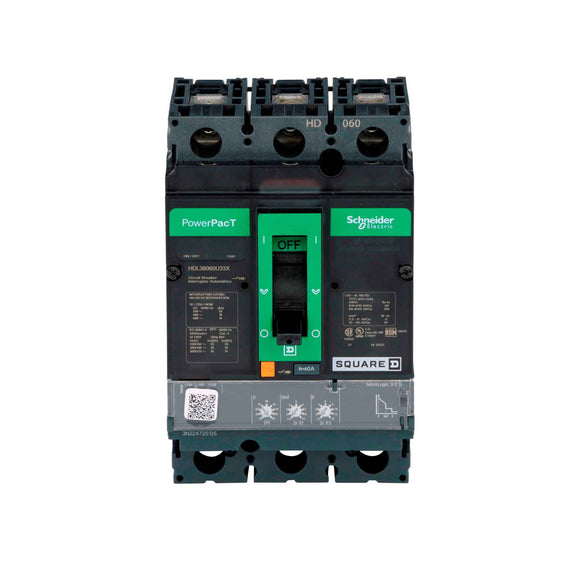

HDL36060U33X Square D Circuit Breaker

Part Number:HDL36060U33X

Manufacturer:Schneider Square D Breakers

Family:Powerpact

Pole:3

Amp60

Volt:600

Phase:3

Category:

Molded Case Breakers / 3-Pole

Connection:Feed-Thru

Type:H Frame

Functions:LSI - Long-Time, Short-Time and Instantaneous

Protection:Solid State

AIC Ratings:18kA@480V

Dimensions (HxWxD):3.39 x 4.09 x 6.42

Weight:4.85 lb

HDL36060U33X - Schneider Electric Molded Case Circuit BreakersThe HDL36060U33X by Schneider Electric, a part of Square Ds Powerpact series, is a 3-phase (3P) molded case circuit breaker configured for ABC phase connection in 3-phase (3PH) applications. This breaker offers a 60A rating at 600V with a standard interrupting capacity of 18kA@480V. Operating as a Feed-Thru breaker, it is UL listed, suitable for reverse fed applications, and can be used for 2P applications. Complete with micrologic standard non-interchangeable trip, LSI - Long-Time, Short-Time, and Instantaneous trip functions, along with line & load side lug terminals, it provides Solid State electronic protection.
