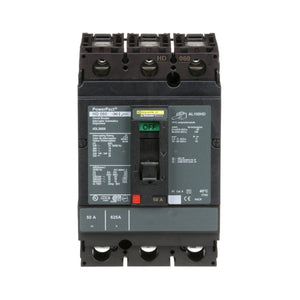

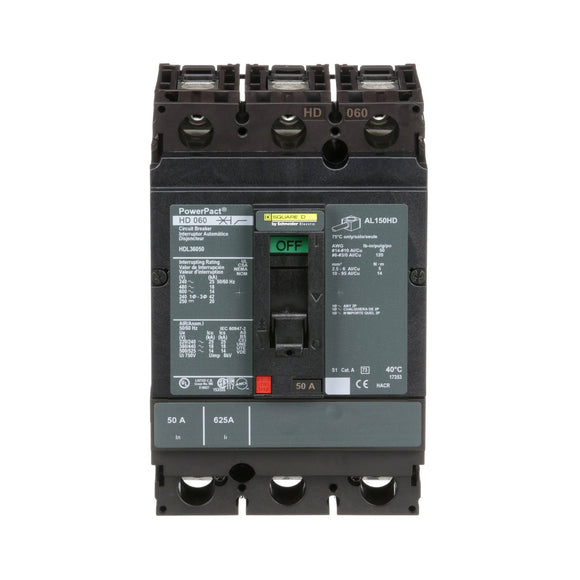

HDL36050 Square D Circuit Breaker

Part Number:HDL36050

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp50

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:HDL

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):6.4x 4.12x 4.36

Weight:1.84 lbs

Additional Details

Frame Type:H-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:50 A

Mounting Mode:Unit mount lug

Breaking Capacity CodeD

Electrical Connection:Lugs line / Lugs load

Magnetic Hold Current:400 A

Continuous Current Rating:80%

Control Type:Toggle

AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal

HDL36050 - Square D Powerpact Circuit BreakerSchneider Electric / Square D, Powerpact, type HDL, 3P, 3PH, 50A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
