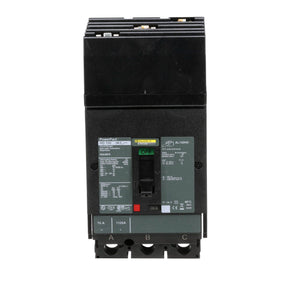

HDA36070 Square D Circuit Breaker

$737.95
Unit price per

Condition: New

HDA36070 - Square D Powerpact Circuit Breaker

Part Number:
HDA36070

Manufacturer:

Schneider Electric / Square D

Family:
Powerpact

Pole:
3

Amp
70

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
HDA

Functions:
LI - Long-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
18kA@480V

Dimensions (HxWxD):
9.73x 4.48x 4.8

Weight:
2.48 lbs

Additional Details

Frame Type:
H-Frame

Trip Unit Technology:
Thermal-magnetic

Line Rated Current:
70 A

Mounting Mode:
I-Line bracket

Breaking Capacity Code
D

Electrical Connection:
I-Line connection line / Lugs load

Magnetic Hold Current:
800 A

Continuous Current Rating:
80%

Control Type:
Toggle

AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal

HDA36070 - Square D Powerpact Circuit Breaker
Square D, Powerpact, type HDA, 3PH, 3P, ABC phase connection, 70A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.
