HDA36060U33X Square D Circuit Breaker

$1,400.95
Unit price per

Condition: New

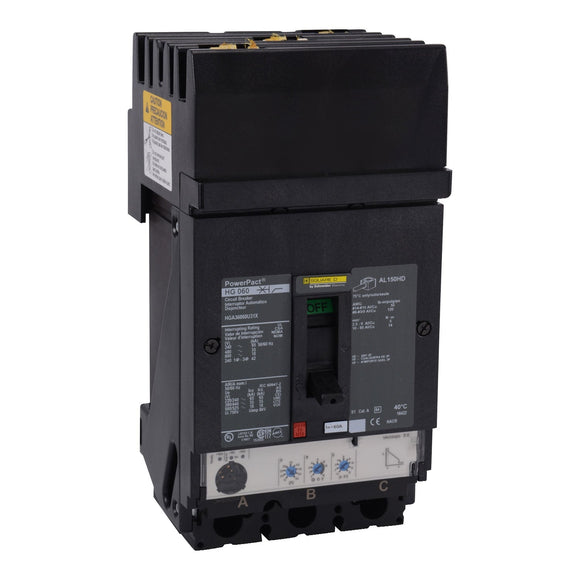

HDA36060U33X - Square D Powerpact Circuit Breaker

Part Number:
HDA36060U33X

Manufacturer:

Schneider Electric / Square D

Family:
Powerpact

Pole:
3

Amp
60

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
HDA

Functions:
LSI - Long-Time, Short-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
18kA@480V

Dimensions (HxWxD):
6.42x 4.09x 3.39

Weight:
4.85 lbs

Additional Details

Frame Type:
H-Frame

Trip Unit Technology:
Thermal-magnetic

Line Rated Current:
60 A

Mounting Mode:
I-Line bracket

Breaking Capacity Code
D

Electrical Connection:
I-Line connection line / Lugs load

Continuous Current Rating:
80%

Control Type:
Toggle

AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal

HDA36060U33X - Square D Powerpact Circuit Breaker
Square D, Powerpact, type HDA, 3P, ABC phase connection, 3PH, 60A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time.
