Schneider Electric HDA36015

HDA36015 Square D Circuit Breaker

  • $677.95
    Unit price per

Condition: New

4 Available

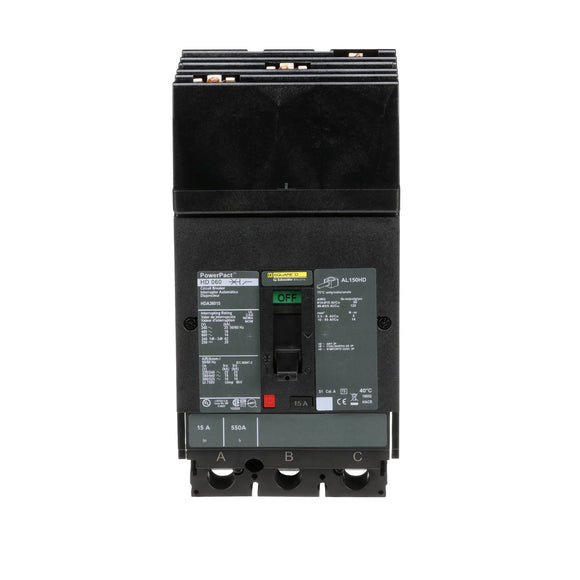

HDA36015 - Square D Powerpact Circuit Breaker

Part Number:HDA36015

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:3

Amp15

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:I-Line Style Plug-In

Type:HDA

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):9.73x 4.48x 4.8

Weight:2.49 lbs

Additional Details

Frame Type:H-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:15 A

Mounting Mode:I-Line bracket

Breaking Capacity CodeD

Electrical Connection:I-Line connection line / Lugs load

Magnetic Hold Current:350 A

Continuous Current Rating:80%

Control Type:Toggle

AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal

HDA36015 - Square D Powerpact Circuit BreakerSquare D, Powerpact, type HDA, 1PH, 2P, B & C phase connection, 150A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip.
