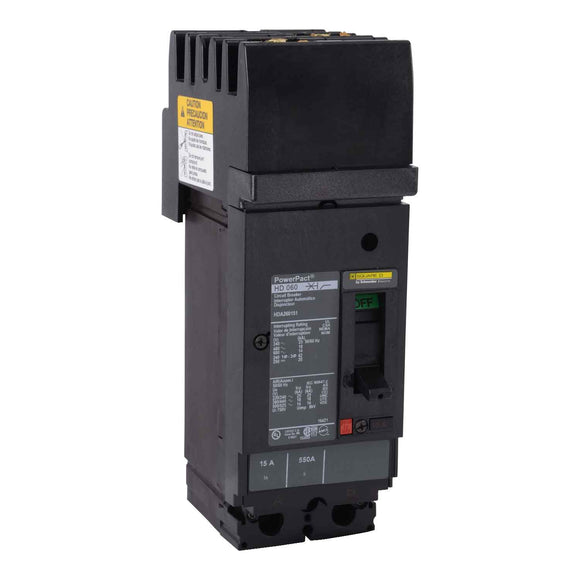

HDA261254 Square D Circuit Breaker

Part Number:HDA261254

Manufacturer:Schneider Square D Breakers

Family:Powerpact

Pole:2

Amp125

Volt:600

Phase:1

Category:

Molded Case Breakers / 2-Pole

Connection:I-Line Style Plug-In

Type:H Frame

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):3.39 x 4.09 x 6.42

Weight:4.85 lb

HDA261254 - Schneider Electric Molded Case Circuit BreakersThis Square-D Powerpact circuit breaker is designed for 1-phase (1PH) applications with a 2-pole (2P) configuration. Configured for B & C phase connection, it boasts a high 125A rating at 600V, featuring a standard interrupting capacity of 18kA@480V. UL listed and suitable for reverse fed applications, it ensures reliable electrical protection. The breaker is complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, adhering to Thermal Magnetic principles.
