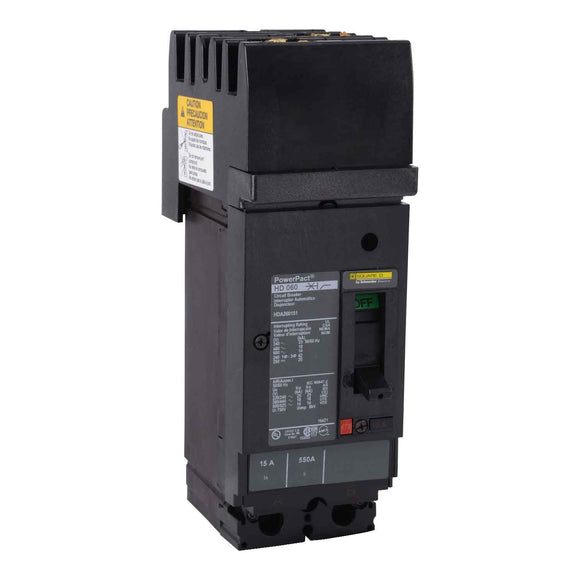

HDA261104 Square D Circuit Breaker
Part Number:HDA261104
Manufacturer:Schneider Square D Breakers
Family:Powerpact
Pole:2
Amp110
Volt:600
Phase:1
Category:
Molded Case Breakers / 2-Pole
Connection:I-Line Style Plug-In
Type:H Frame
Functions:LI - Long-Time and Instantaneous
Protection:Thermal Magnetic
AIC Ratings:18kA@480V
Dimensions (HxWxD):3.39 x 4.09 x 6.42
Weight:4.85 lb
HDA261104 - Schneider Electric Molded Case Circuit BreakersThe HDA261104 by Square D is a 1-phase (1PH) molded case circuit breaker, type HDA, configured for B & C phase connection. It features a robust 110A rating at 600V with a standard interrupting capacity of 18kA@480V. UL listed and suitable for reverse fed applications, this Thermal Magnetic circuit breaker comes complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, ensuring secure electrical protection.
