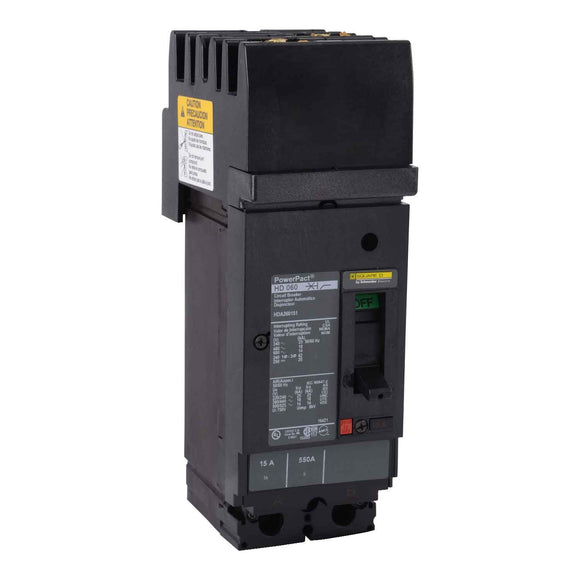

HDA261101 Square D Circuit Breaker

Part Number:HDA261101

Manufacturer:Schneider Square D Breakers

Family:Powerpact

Pole:2

Amp110

Volt:600

Phase:1

Category:

Molded Case Breakers / 2-Pole

Connection:I-Line Style Plug-In

Type:H Frame

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):3.39 x 4.09 x 6.42

Weight:4.85 lb

HDA261101 - Schneider Electric Molded Case Circuit BreakersExplore the HDA261101 by Square D, a 2-pole (2P) molded case circuit breaker within the Powerpact series. Configured for A & B phase connection and designed for single-phase (1PH) applications, it features a 110A rating at 600V. With a standard interrupting capacity of 18kA@480V, it is UL listed and adopts the I-Line Style Plug-In installation. Complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, and load side lug terminals, this Thermal Magnetic molded case circuit breaker ensures secure electrical protection.
