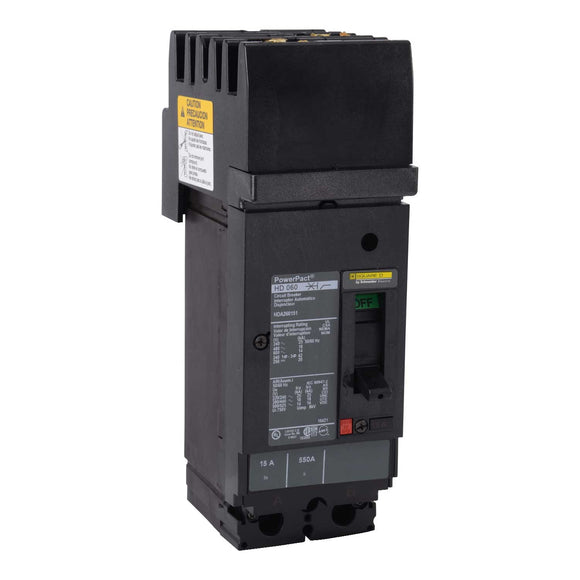

HDA260501 Square D Circuit Breaker

Part Number:HDA260501

Manufacturer:

Schneider Electric / Square D

Family:Powerpact

Pole:2

Amp50

Volt:600

Phase:1

Category:

Molded Case / 2-Pole

Connection:I-Line Style Plug-In

Type:HDA

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):9.73x 2.94x 4.8

Weight:1.36 lbs

Additional Details

Frame Type:H-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:50 A

Mounting Mode:I-Line bracket

Breaking Capacity CodeD

Electrical Connection:I-Line connection line / Lugs load

Magnetic Hold Current:400 A

Continuous Current Rating:80%

Control Type:Toggle

AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal

HDA260501 - Square D Powerpact Circuit BreakerSquare D, Powerpact, type HDA, 2P, A & B phase connection, 1PH, 50A, 600V, 18kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.
