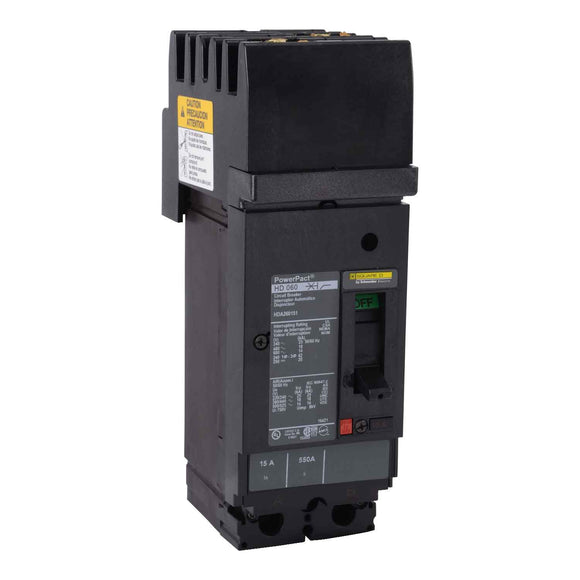

HDA260451 Square D Circuit Breaker

Part Number:HDA260451

Manufacturer:Schneider Square D Breakers

Family:Powerpact

Pole:2

Amp45

Volt:600

Phase:1

Category:

Molded Case Breakers / 2-Pole

Connection:I-Line Style Plug-In

Type:H Frame

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):3.39 x 4.09 x 6.42

Weight:4.85 lb

HDA260451 - Schneider Electric Molded Case Circuit BreakersSquare-D presents the Powerpact series with the 2-pole (2P) molded case circuit breaker configured for A & B phase connection in single-phase (1PH) applications. This breaker boasts a 45A rating at 600V, with a standard interrupting capacity of 18kA@480V. UL listed and designed for I-Line Style Plug-In installations, it features non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, and load side lug terminals, ensuring secure and efficient electrical protection.
