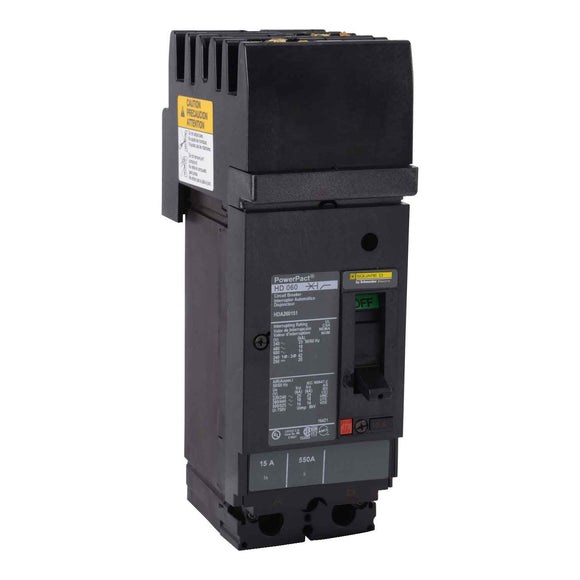

HDA260251 Square D Circuit Breaker

Part Number:HDA260251

Manufacturer:Schneider Square D Breakers

Family:Powerpact

Pole:2

Amp25

Volt:600

Phase:1

Category:

Molded Case Breakers / 2-Pole

Connection:I-Line Style Plug-In

Type:H Frame

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):3.39 x 4.09 x 6.42

Weight:4.85 lb

HDA260251 - Schneider Electric Molded Case Circuit BreakersSquare-D introduces the Powerpact series with the HDA circuit breaker, type HDA. This 2-pole (2P) breaker is configured for A & B phase connection, featuring a 25A rating in single-phase (1PH) applications. With a voltage capacity of 600V and a standard interrupting capacity of 18kA@480V, it is UL listed and adopts the I-Line Style Plug-In installation. Complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, and load side lug terminals, this Thermal Magnetic molded case circuit breaker ensures secure electrical protection.
