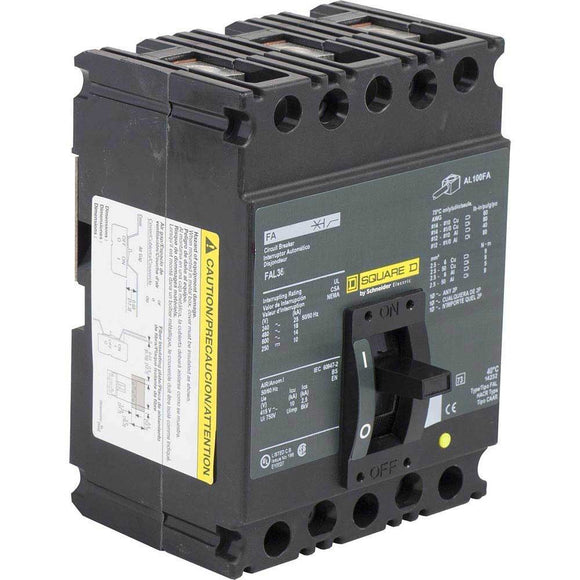

FAL36015 Square D Circuit Breaker

Part Number:FAL36015

Manufacturer:

Schneider Electric / Square D

Family:FAL Series

Pole:3

Amp15

Volt:600

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:FAL

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):6x 4.5x 4.13

Weight:5.04 lbs

Additional Details

Frame Type:F-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:15 A

Mounting Mode:Unit Mount

Breaking Capacity CodeA

Electrical Connection:Lugs load / Lugs Line

Magnetic Hold Current:275 A

FAL36015 - Square D Powerpact Circuit BreakerSquare D, FAL Series, type FAL, 3P, 3PH, 15A, 600V, 14kA@600V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
