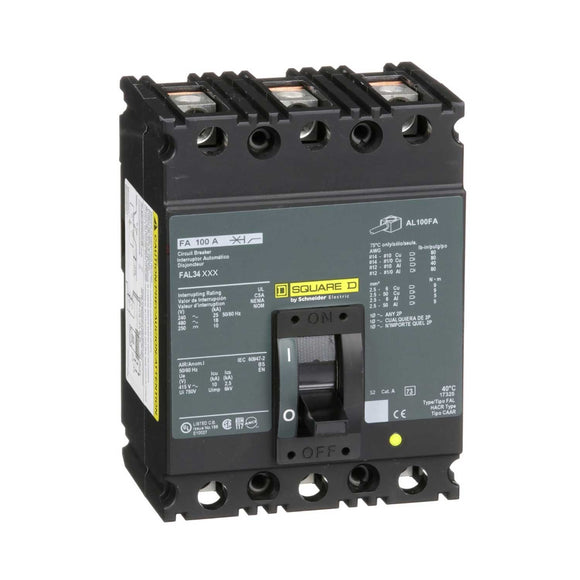

FAL34015 Square D Circuit Breaker

Part Number:FAL34015

Manufacturer:

Schneider Electric / Square D

Family:FAL Series

Pole:3

Amp15

Volt:480

Phase:3

Category:

Molded Case / 3-Pole

Connection:Feed-Thru

Type:FAL

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):6x 4.5x 4.13

Weight:3.460 lbs

Additional Details

Module Type:F-Frame

Trip Unit Technology:Thermal-magnetic

Line Rated Current:15 A

Mounting Mode:Unit Mount

Breaking Capacity CodeA

Electrical Connection:Lugs load / Lugs line

Magnetic Hold Current:275 A

FAL34015 - Square D Powerpact Circuit BreakerSquare D, FAL Series, type FAL, 3P, 3PH, 15A, 480V, 18kA@480V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
