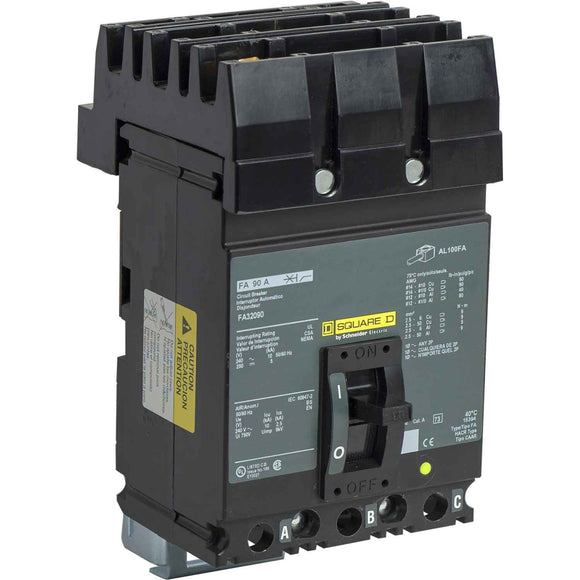

FA32090 Square D Circuit Breaker

FA32090 - Schneider Electric Molded Case
Circuit Breakers

Part Number:
FA32090

Manufacturer:
Schneider Square D Breakers

Family:
I-Line

Pole:
3

Amp
90

Volt:
240

Phase:
3

Category:

Molded Case Breakers / 3-Pole

Connection:
I-Line Style Plug-In

Type:
F Frame

Functions:
LI - Long-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
10kA@240V

Dimensions (HxWxD):
4.13 x 4.5 x 6.4

Weight:
6.38 lb

FA32090 - Schneider Electric Molded Case
Circuit Breakers
The Square D I-Line Type FA molded case circuit breaker, designated as FA32100, is a 3-pole, 3-phase breaker with a frame type specification, having a 100A capacity at 240V and a standard interrupting rating of 10kA@240V. It features an I-Line Style Plug-In configuration, complete with LI - Long-Time and Instantaneous trip functions, and operates utilizing Thermal Magnetic principles.
